SILVYN® EMC AS-CU 27 / 22X27 50M

Name: SILVYN® EMC AS-CU 27 / 22X27 50M
Brand: LAPP
SKU: 64400505
Price: 3214.51 THB
Availability: OutOfStock

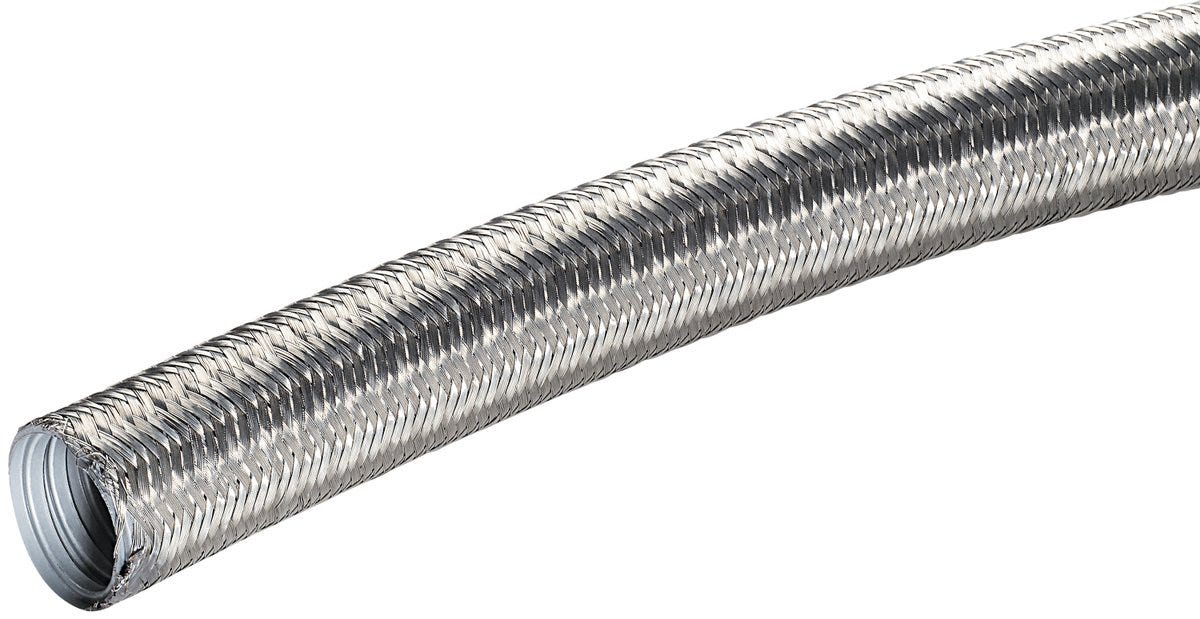

Protective cable conduit with braiding and interlocked profile; Inner diameter: 22mm; Outer diameter: 27mm; Nominal size: 27; Steel

LAPPSKU: 64400505Article No.#: 64400505

SILVYN® EMC AS-CU 27 / 22X27 50M

Protective cable conduit with braiding and interlocked profile; Inner diameter: 22mm; Outer diameter: 27mm; Nominal size: 27; Steel

SILVYN® EMC AS-CU 27 / 22X27 50M

3,214.51 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Optimum EMC protection, High-tensile, High crush-resistance, Flexible, High mechanical resistance

Applications

Mechanical engineering, Automotive industry, Conveyor technology, Railway applications / vehicle construction, Used in areas where electromagnetic interferences can occur

Technical Attributes

General Information

Product type	Protective conduit with braiding and interlocked profile
Brand	SILVYN®
Weight	510 kg/km

Electrical Characteristics

Product Design

Smooth outer conduit surface
Bending protection fixed installation
Nominal size	27
Total length	50
Braiding material, short form	Cu
Material braiding	Copper
EMC screening
Slit
Flexibly installed bending protection
Outer diameter	27
Smooth inner conduit surface
Inner diameter	22
Conduit material	Steel
Bending protection

Product Characteristics

Flame-retardant
Oil-resistant
For continuous flexing
Suitable for EX-applications
Bending radius, static	45
UV-resistant
Bending radius, dynamic	115
Halogenfree

Certifications and Standards

EHEDG certified
Ecolab certified
DNV-certified
cUR recognized
cUL listed
CSA certified
UL listed
CE marked
GGVS certified
UL recognized
NSF certified
VDE certified
EAC certification number	Отказное письмо № 505
EAC-certified	Not required

Documentation

Downloads

approval vde - de-DE (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
