H07V-K VDE 1X95 GY

Single core; 1X95; U0/U: 450/750 V; PVC; Fixed Installation

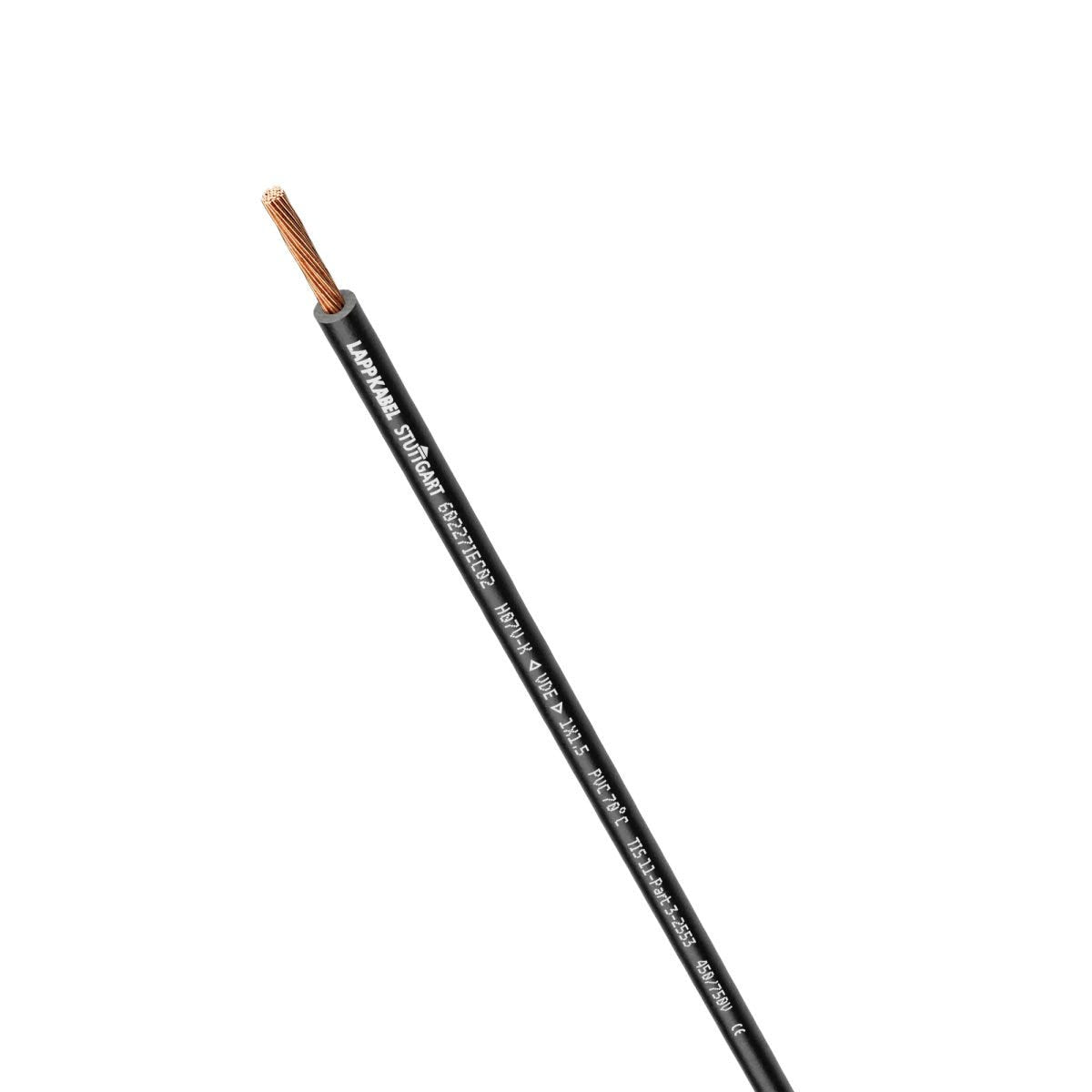

Primary ImagePrimary Image

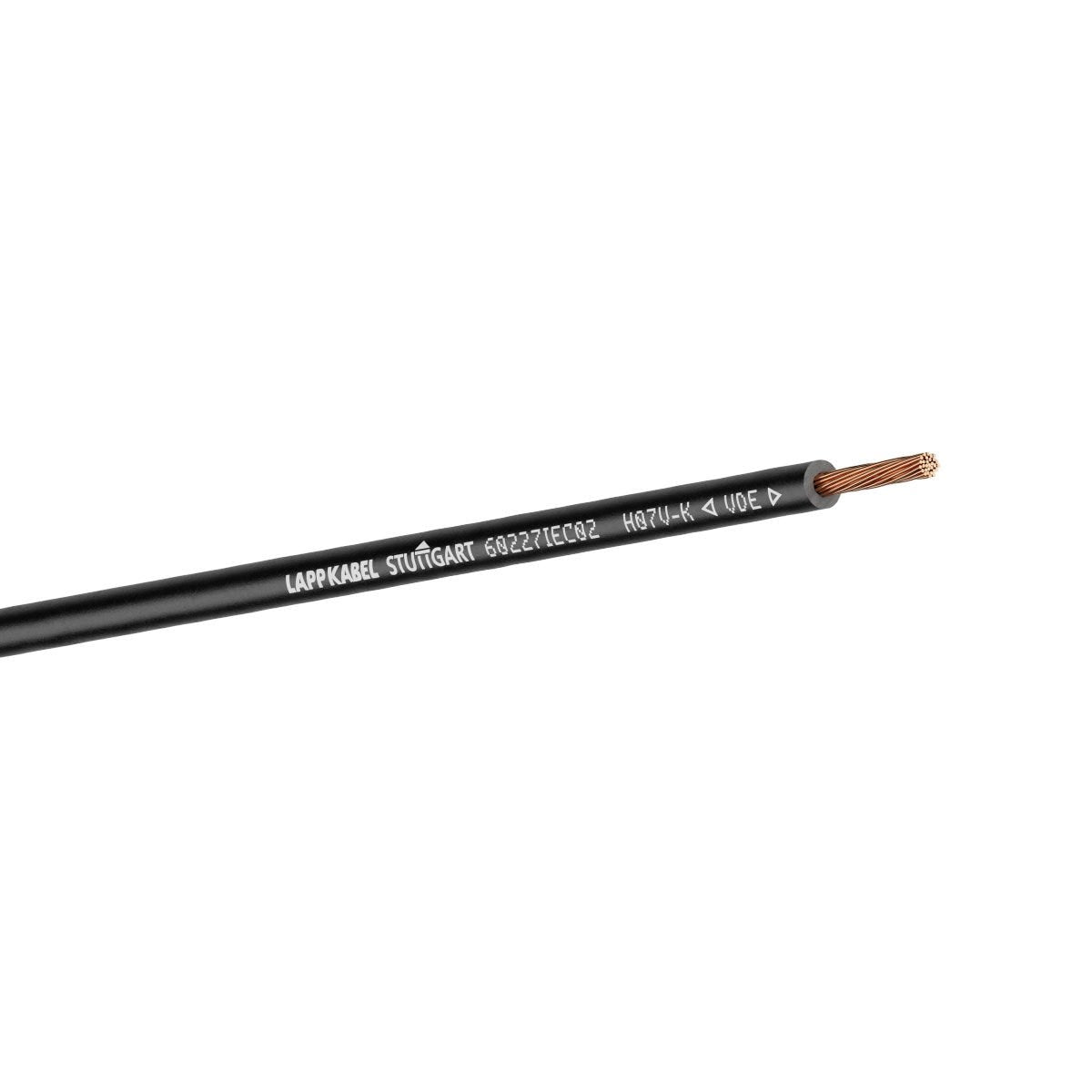

Secondary ImageSecondary Image

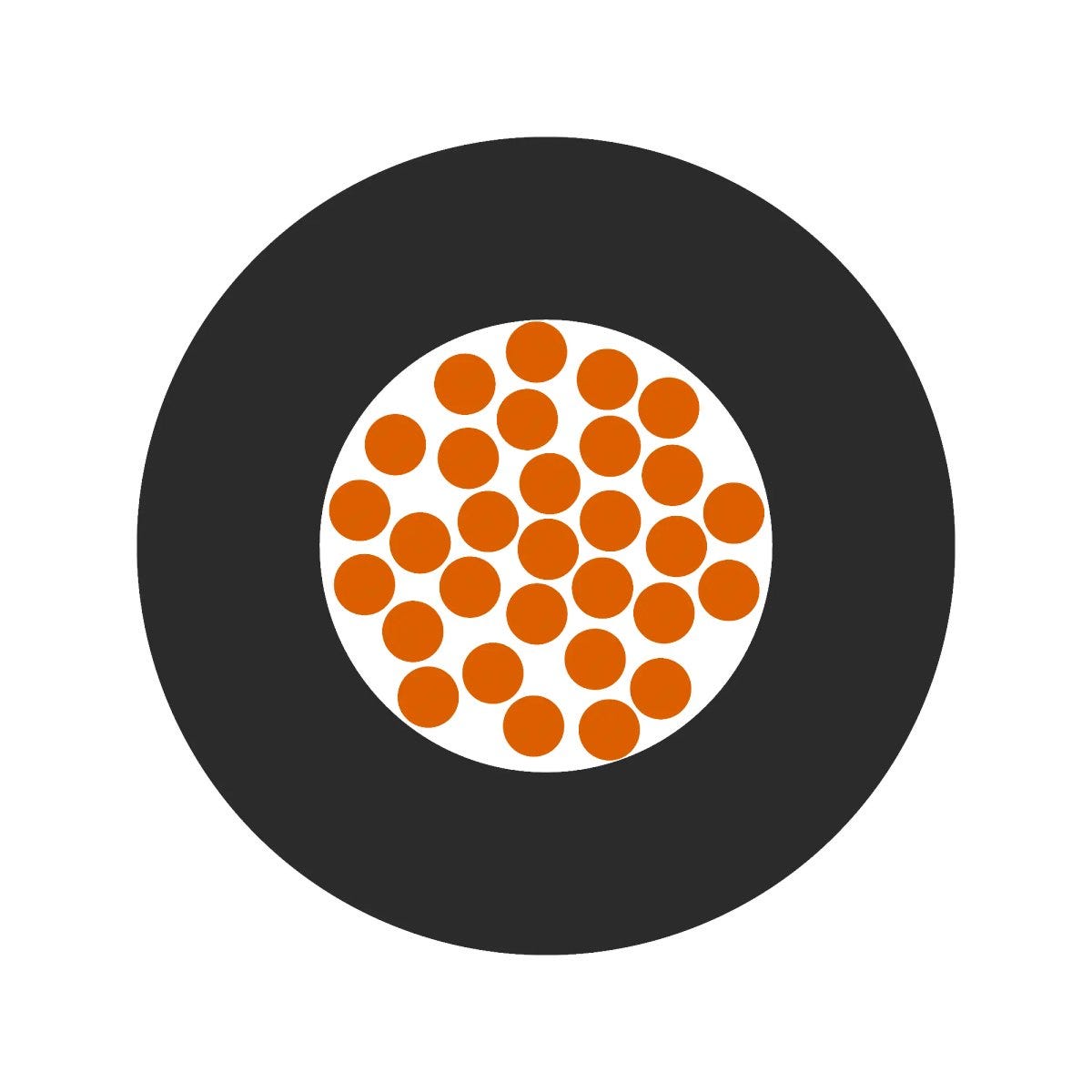

Tertiary ImageTertiary Image
Primary Image
Secondary Image
Tertiary Image
LAPPSKU: 8121065Article No.#: 8121065

H07V-K VDE 1X95 GY

Single core; 1X95; U0/U: 450/750 V; PVC; Fixed Installation
Primary Image
H07V-K VDE 1X95 GY
623.30 ฿
การชำระเงินและความปลอดภัย
PayPal

ข้อมูลการชำระเงินของคุณจะได้รับการประมวลผลอย่างปลอดภัย เราไม่จัดเก็บรายละเอียดบัตรเครดิตและไม่สามารถเข้าถึงข้อมูลบัตรเครดิตของคุณได้
Product characteristics
flame-retardant flame-retardant
Certificate
CE marked CE marked
VDE certified VDE certified
ประโยชน์
PVC-insulated, single core cable with 450/750V voltage
Reduced risk of flame propagation in event of fire; flame-retardant according to IEC 60332-1-2
Good electrical conductivity due to fine-wired copper conductor according to class 5 of IEC 60228 and VDE 0295
VDE certified according to EN 50525-2-31.
แอปพลิเคชัน
Suitable for laying in tubes, exposed or buried in plaster, and in closed installation ducts
Suitable for direct laying on racks, troughs and tubes as a potential equalisation conductor
Suitable for use in fixed installations with a temperature of -30˚C to +70˚C.

คุณสมบัติทางเทคนิค

ข้อมูลทั่วไป
Product type Single core
Copper index 912.000  kg/km
Weight 975 kg/km
คุณลักษณะทางไฟฟ้า
Nominal voltage U0/U: 450/750 V AC rms according to IEC
Test voltage 2.5  kV
การออกแบบผลิตภัณฑ์
Shape of cable Round
Conductor design IEC 60228 class 5: fine-wire
Nominal outer diameter 16.0  mm
Conductor material Bare copper
Number of cores 1
Nominal conductor cross-section (metric) 95  mm²
Cable dimension 1X95
Core insulation basic material Polyvinylchloride
Core insulation basic material, short form PVC
คุณสมบัติของผลิตภัณฑ์
Flame-retardant

Application area Fixed installation
Oil-resistant

Temperature, fixed installation min -30
Temperature, fixed installation max 70
UV-resistant

Minimum bending radius, stationary 6 x outer diameter
Temperature, fixed installation -30 °C to 70 °C max. conductor temperature
Flame retardance according to IEC 60332-1-2
Minimum bending radius in mm, fixed installation 96.0  mm
Halogenfree

การรับรองและมาตรฐาน
HAR-certified

CE marked

VDE certified

เอกสารประกอบ
Downloads
Datasheet - en-UK (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
รายการกลุ่มผลิตภัณฑ์
All articles from H07V-K VDE
Article number Conductor cross-section (mm2) Single core colour Single core packaging type Imp outer dia cable sheath min Min. outer diameter Imp outer diam cable sheath max Max. outer diameter Copper index calc export Weight
8120001 1.5 20 kg/km
8120002 2.5 31 kg/km
8120003 4 46 kg/km
8120004 6 65 kg/km
8120005 10 113 kg/km
8120006 16 173 kg/km
8120011 1.5 20 kg/km
8120012 2.5 31 kg/km
8120013 4 46 kg/km
8120014 6 65 kg/km
8120015 10 113 kg/km
8120016 16 173 kg/km
8120021 1.5 20 kg/km
8120022 2.5 31 kg/km
8120023 4 46 kg/km
8120024 6 65 kg/km
8120025 10 113 kg/km
8120026 16 173 kg/km
8120031 1.5 20 kg/km
8120033 4 46 kg/km
8120035 10 113 kg/km
8120036 16 173 kg/km
8120041 1.5 20 kg/km
8120042 2.5 31 kg/km
8120043 4 46 kg/km
8120044 6 65 kg/km
8120045 10 113 kg/km
8120046 16 173 kg/km
8120051 1.5 20 kg/km
8120052 2.5 31 kg/km
8120053 4 46 kg/km
8120054 6 65 kg/km
8120055 10 113 kg/km
8120056 16 173 kg/km
8120061 1.5 20 kg/km
8120062 2.5 31 kg/km
8120063 4 46 kg/km
8120064 6 65 kg/km
8120065 10 113 kg/km
8120066 16 173 kg/km
8120091 1.5 20 kg/km
8120092 2.5 31 kg/km
8120093 4 46 kg/km
8120094 6 65 kg/km
8120095 10 113 kg/km
8120096 16 173 kg/km
8120112 2.5 31 kg/km
8120116 16 173 kg/km
8120122 2.5 31 kg/km
8121001 25 269 kg/km
8121002 35 366 kg/km
8121003 50 518 kg/km
8121004 70 718 kg/km
8121005 95 975 kg/km
8121006 120 1218 kg/km
8121007 150 1502 kg/km
8121008 185 1875 kg/km
8121009 240 2403 kg/km
8121011 25 269 kg/km
8121012 35 366 kg/km
8121013 50 518 kg/km
8121014 70 718 kg/km
8121015 95 975 kg/km
8121016 120 1218 kg/km
8121017 150 1502 kg/km
8121018 185 1875 kg/km
8121019 240 2403 kg/km
8121021 25 269 kg/km
8121022 35 366 kg/km
8121023 50 518 kg/km
8121024 70 718 kg/km
8121025 95 975 kg/km
8121026 120 1218 kg/km
8121027 150 1502 kg/km
8121028 185 1875 kg/km
8121029 240 2403 kg/km
8121031 25 269 kg/km
8121032 35 366 kg/km
8121033 50 518 kg/km
8121034 70 718 kg/km
8121035 95 975 kg/km
8121036 120 1218 kg/km
8121037 150 1502 kg/km
8121038 185 1875 kg/km
8121039 240 2403 kg/km
8121041 25 269 kg/km
8121042 35 366 kg/km
8121043 50 518 kg/km
8121044 70 718 kg/km
8121045 95 975 kg/km
8121046 120 1218 kg/km
8121047 150 1502 kg/km
8121048 185 1875 kg/km
8121049 240 2403 kg/km
8121051 25 269 kg/km
8121052 35 366 kg/km
8121053 50 518 kg/km
8121054 70 718 kg/km
8121055 95 975 kg/km
8121056 120 1218 kg/km
8121057 150 1502 kg/km
8121058 185 1875 kg/km
8121059 240 2403 kg/km
8121061 25 269 kg/km
8121062 35 366 kg/km
8121063 50 518 kg/km
8121064 70 718 kg/km
8121065 95 975 kg/km
8121066 120 1218 kg/km
8121067 150 1502 kg/km
8121068 185 1875 kg/km
8121069 240 2403 kg/km
8121091 25 269 kg/km
8121092 35 366 kg/km
8121093 50 518 kg/km
8121094 70 718 kg/km
8121095 95 975 kg/km
8121096 120 1218 kg/km
8121097 150 1502 kg/km
8121098 185 1875 kg/km
8121099 240 2403 kg/km
