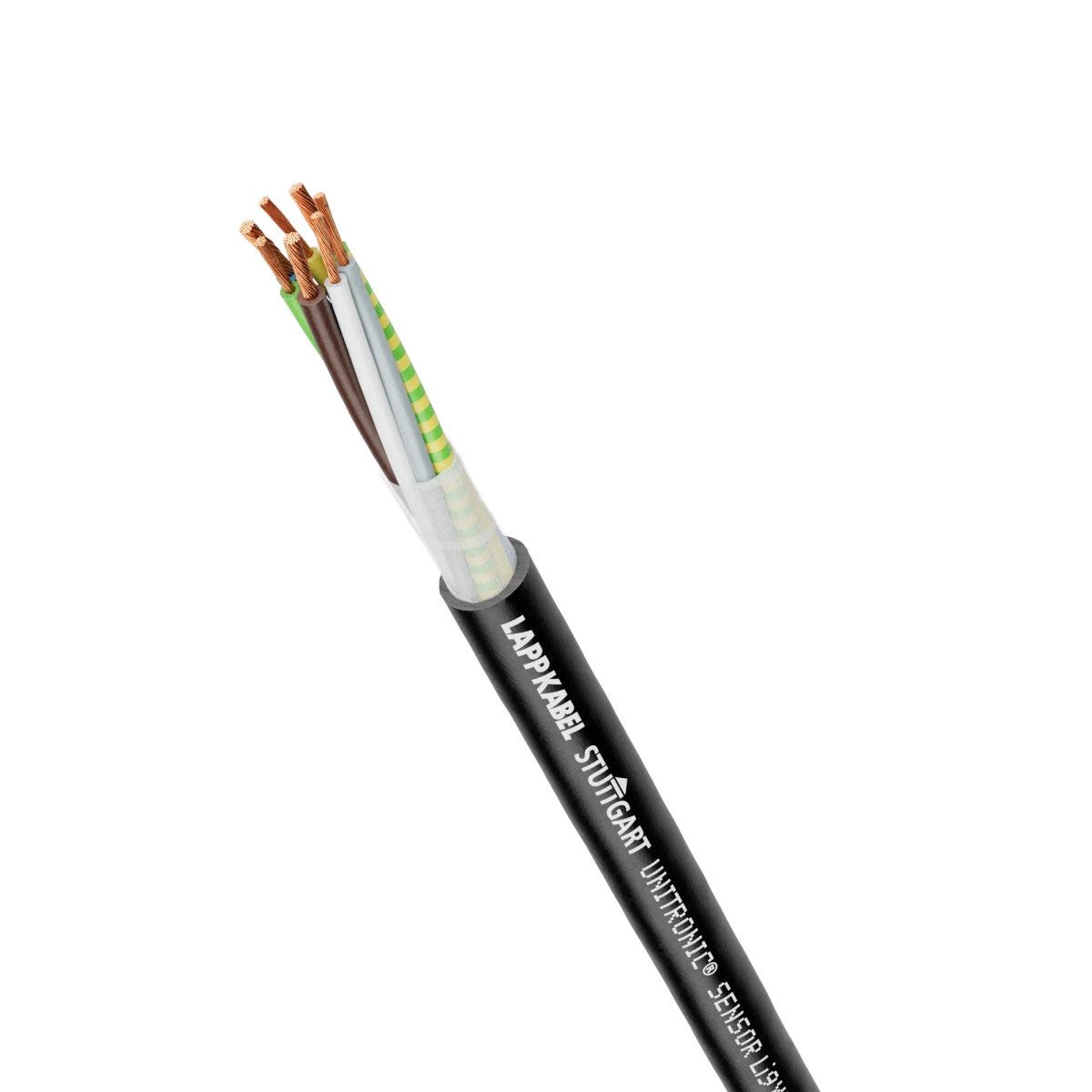

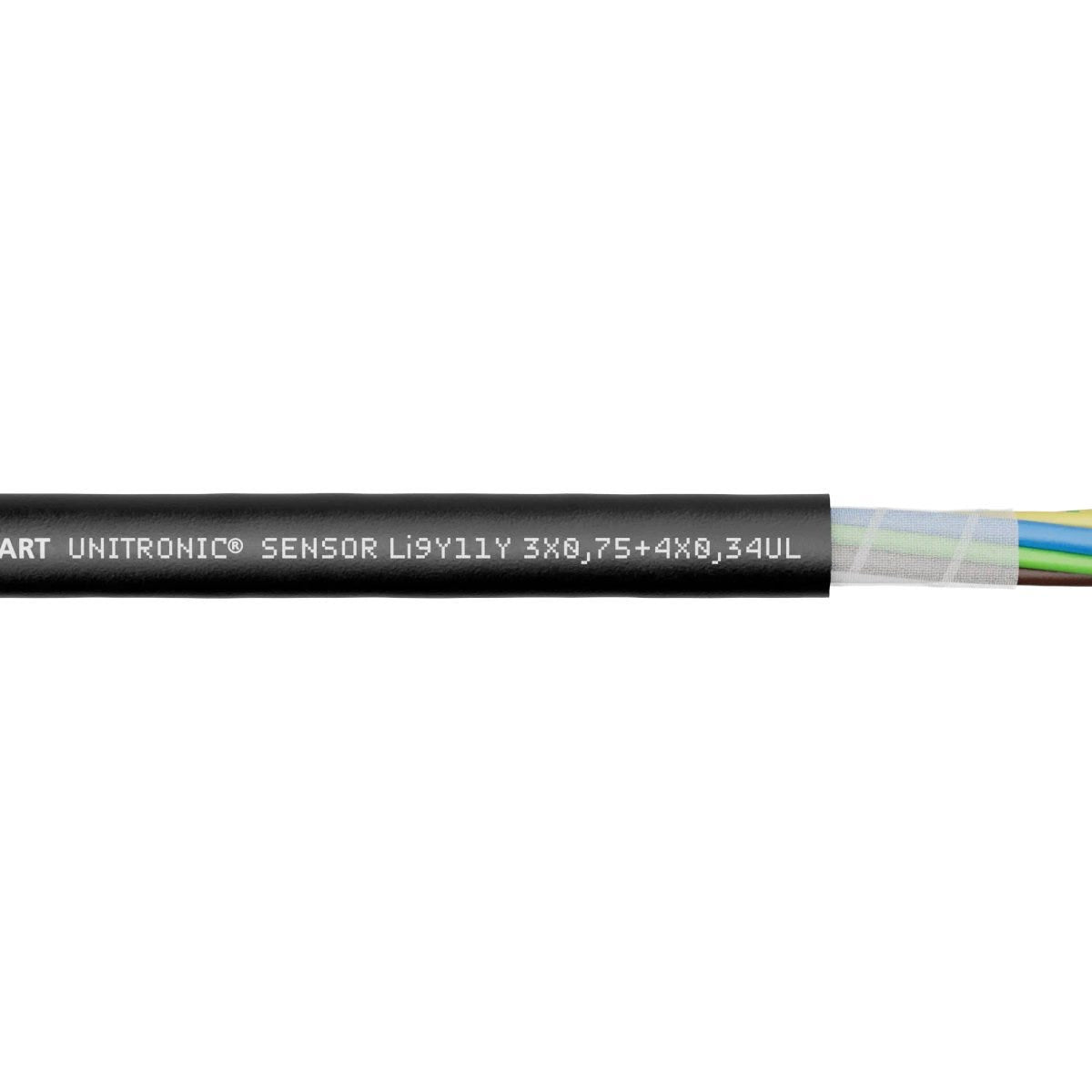

UNITRONIC® SENSOR Li9Y11Y 3x0,75+4x0,34UL

Name: UNITRONIC® SENSOR Li9Y11Y 3x0,75+4x0,34UL
Brand: LAPP
SKU: 7038880
Price: 228.63 THB
Availability: OutOfStock

Sensor/actuator cable; Cable chain; PUR; black

LAPPSKU: 7038880Article No.#: 7038880

Sensor/actuator cable; Cable chain; PUR; black

228.63 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Durable, resistant product thanks to the outer sheath material that is resistant to abrasions, notches and cuts

UL certification according to technical data enables the product to be used on the North American market.

Applications

The cable design allows flexible, constantly flexing use in moving machine parts and cable chains

Can be used in dry, damp and, especially, harsh and oily environments

The PU outer sheath withstands high mechanical loads

The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.

Technical Attributes

General Information

Brand	UNITRONIC®
Product type	Sensor/actuator cable
valid fieldbus or Ethernet system	Sensor/Actuator
Copper index	34.500 kg/km
Copper index (lb)	231.831 lb
Weight	65 kg/km

Electrical Characteristics

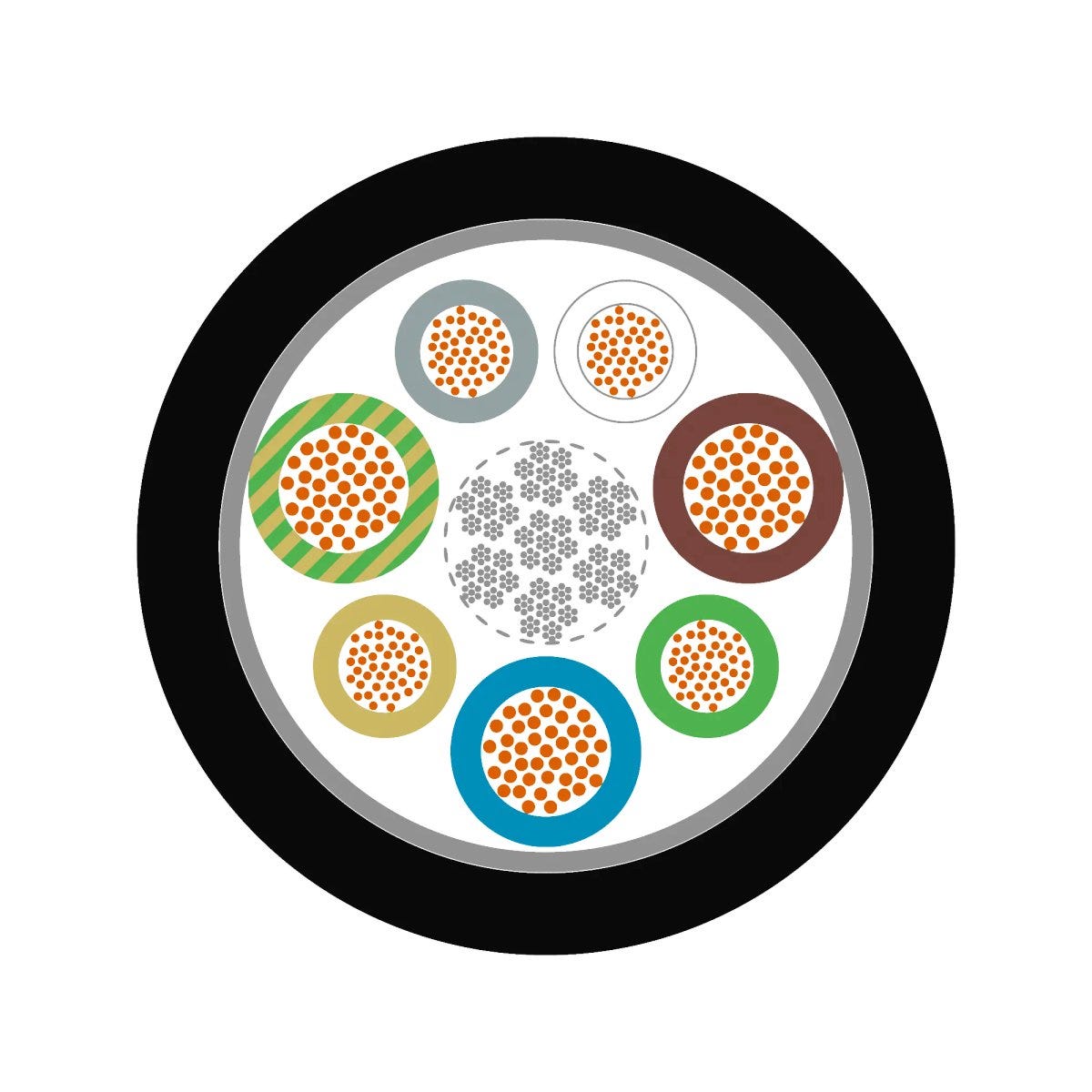

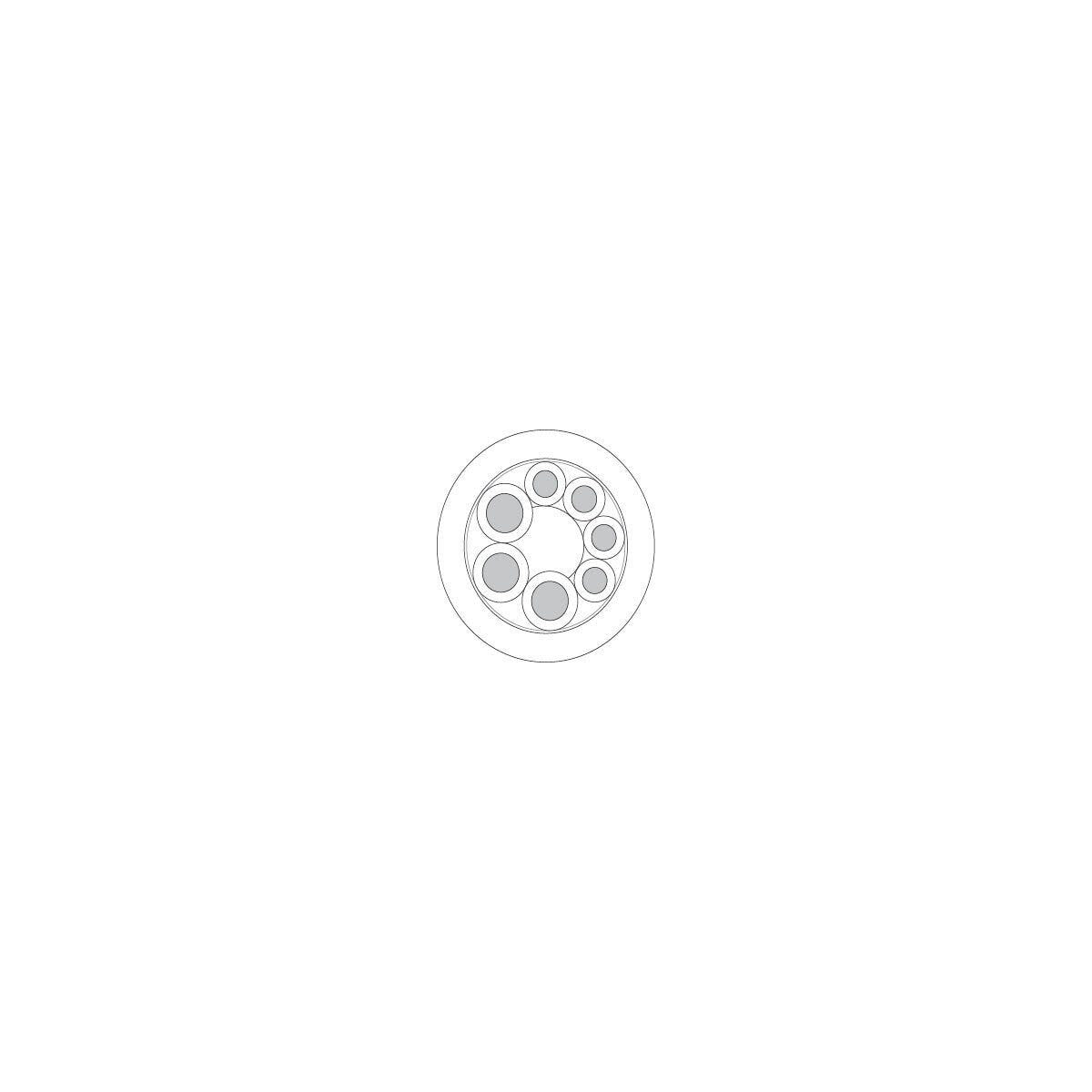

Product Design

Conductor design	extra-fine wire
Nominal outer diameter	6.6 mm
Conductor material	Bare copper
Nominal conductor cross-section (metric)	0.75 mm²
Conductor count/size	3x0.75+4x0.34
Wrapping over stranding	Fleece wrapping
Shielded
Core identification	Colours
Shape of cable	Round
Outer sheath colour	black
Leading conductor cross-section	mm²
With rodent protection
Cable element 1	Signal core: 3x0.75
Li-stranded cables	Li9Y11Y
Core insulation basic material	Polypropylene
Basic material of outer sheath	Polyurethane
Including protective earth
Core insulation basic material, short form	PP
Cable element 2	Signal core: 4x0.34
Basic material of outer sheath, short form	PUR

Product Characteristics

Flame-retardant
Halogen-free according to	VDE 0472-815
For continuous flexing
Fast Connect (FC) cable
Minimum bending radius in mm, dynamic continuously flexing	66.0 mm
UV-resistant
Minimum bending radius in mm, fixed installation	33.0 mm
max. conductor temperature, dynamic continuously flexing	-5 °C to 80 °C max. conductor temperature:
Application area	Cable chain
max. conductor temperature, occasionally moved	-5 °C to 80 °C max. conductor temperature:
Oil-resistant
Minimum bending radius in mm, occasionally flexing	33.0 mm
Minimum bending radius, stationary	5 x outer diameter
Minimum bending radius, occasionally flexing	5 x outer diameter
Temperature, fixed installation	-40 °C to 80 °C max. conductor temperature:
Flame retardance according to	UL FT2
Minimum bending radius, dynamic continuously flexing	10 x outer diameter
For torsional load
Halogenfree

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
