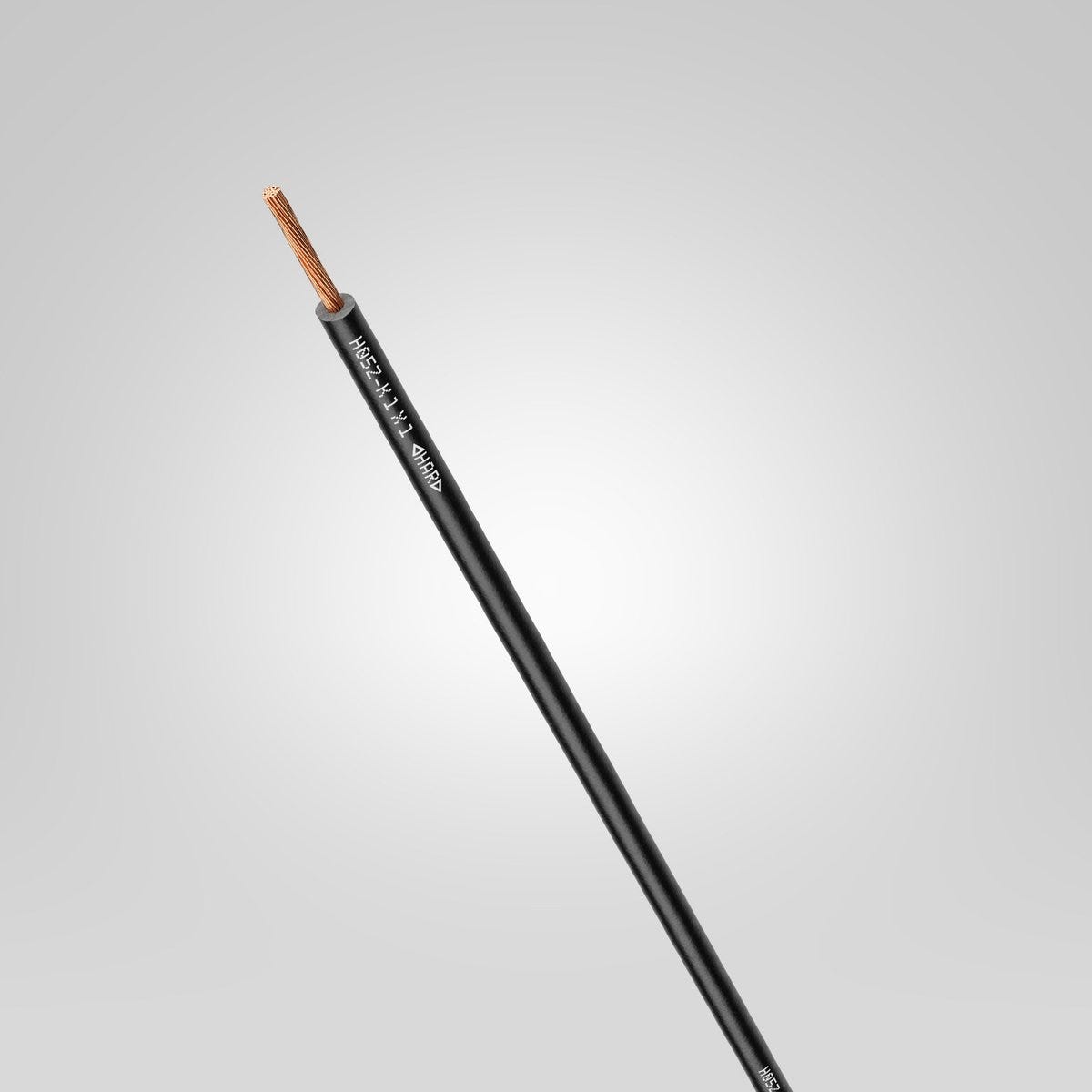

H05Z-K 90°C EMBOSS 1X0,5 GN

Name: H05Z-K 90°C EMBOSS 1X0,5 GN
Brand: LAPP
SKU: 4725121K
Price: 10.37 THB
Availability: OutOfStock

Single core; 1X0.5; green; Large cardboard box; U₀/U: 300/500 V; Halogen-free compound; HAR-certified; Fixed installation

LAPPSKU: 4725121KArticle No.#: 4725121K

H05Z-K 90°C EMBOSS 1X0,5 GN

Single core; 1X0.5; green; Large cardboard box; U₀/U: 300/500 V; Halogen-free compound; HAR-certified; Fixed installation

H05Z-K 90°C EMBOSS 1X0,5 GN

10.37 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Made according to harmonised European type H05Z-K, with ◁HAR▷ testing mark for proven reliability and quality

◁HAR▷-style cables are widely accepted and can be used in Europe

Halogen-free core insulation compound as well as low smoke gas emission and low corrosiveness of gases in the event of fire make the cable suitable for use in public areas

Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection at www.lappkabel.de/cpr

Compact design for easy processing

Different core insulation colours available

Available as ring, on coils or in large disposable cardboard boxes.

Applications

For wiring machine-internal circuits, subject to special fire protection requirements

Suitable for wiring inside control cabinets

For wiring lighting

For fixed and protected installation in an electrical installation pipe on or under plaster

Can be used for open installation into cable conduits for equipotential bonding

Can be used in dry spaces

For operating temperatures from -40°C to +90°C.

Technical Attributes

General Information

Length per PU	3000
Single core packaging type	Large cardboard box
Product type	Single core
Copper index	4.800 kg/km
Copper index (lb)	32.255 lb
Weight	9 kg/km

Electrical Characteristics

Nominal voltage	U₀/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C	39 Ω/km
Test voltage	2 kV
Current rating according to	VDE 0298-4

Product Design

Single core colour	green

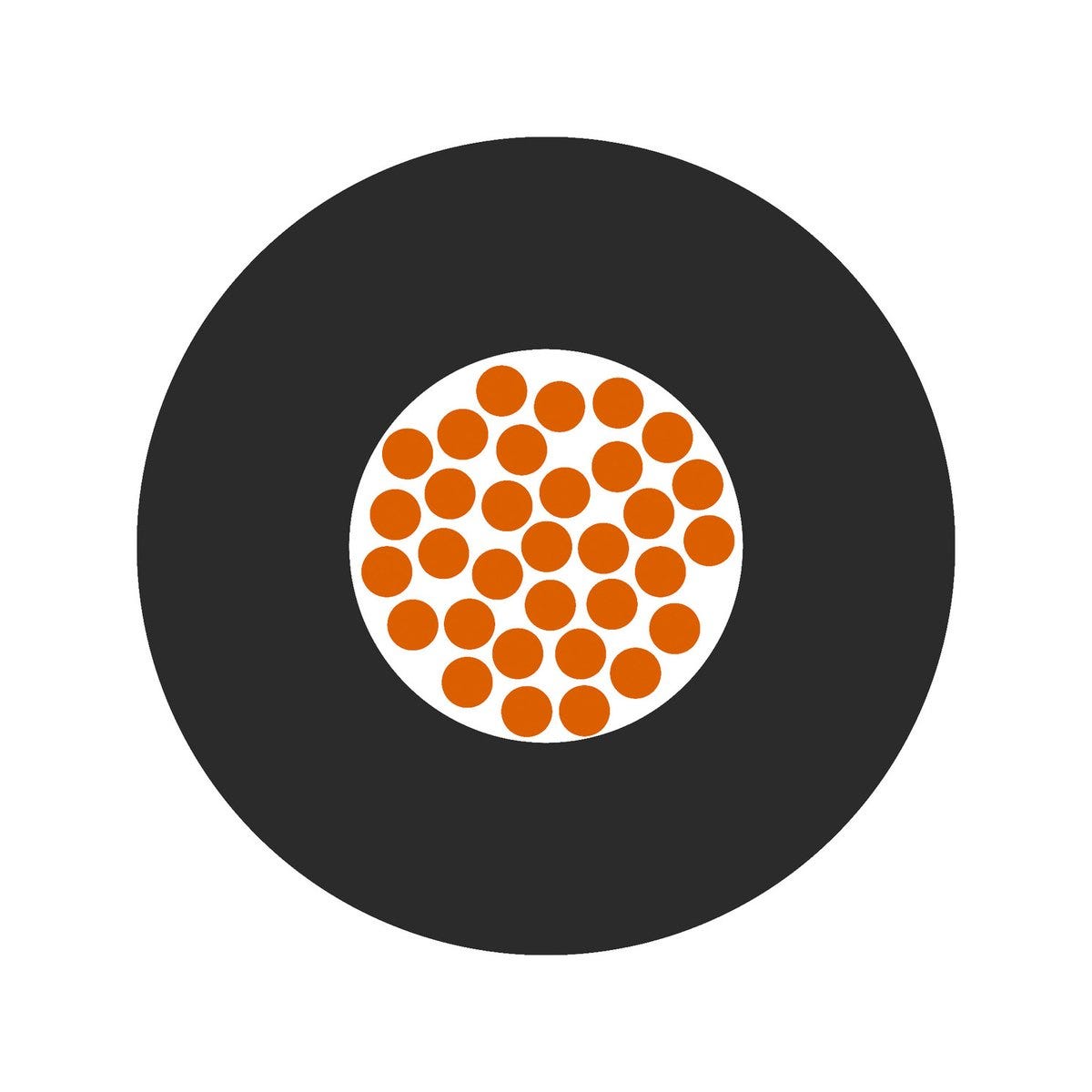

Conductor design	IEC 60228 class 5: fine-wire
Conductor material	Bare copper
Harmonised design	H05Z-K
Min. outer diameter	2.1
Nominal conductor cross-section (metric)	0.5 mm²
Cable dimension	1X0.5
Shielded
Shape of cable	Round
Number of cores	1
Core insulation basic material	Halogen-free compound
Single core identification	Single-coloured
Max. outer diameter	2.6

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
Halogen-free according to	EN 50525-1 Annex B
Storage temperature min.	-5
Ozone resistant
Installation temperature min.	-5
UV-resistant
Minimum bending radius in mm, fixed installation	10.4 mm
PWIS-free
Application area	Fixed installation
Low smoke density according to	IEC 61034-2
Oil-resistant
Max. storage temperature	40
Minimum bending radius with careful bending	2 x outer diameter
Max. assembly temperature	80
weather resistant
Minimum bending radius, stationary	4 x outer diameter
Temperature, fixed installation	-40 °C to 90 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
For torsional load
Halogenfree

Certifications and Standards

Product standard DIN / EN	EN 50525-3-41
HAR-certified
Flame retardance tested according to UN/ECE-R118
CE marked
CPR fire class	Eca
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
EAC-certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

All articles from H05Z-K 90°C

Article number	Conductor cross-section (mm2)	Single core colour	Single core packaging type	Length per PU	Min. outer diameter	Max. outer diameter	Weight
4725001	0.5	green/yellow	Ring	100	2.1	2.6	9 kg/km
4725001K	0.5	green/yellow	Large cardboard box	3000	2.1	2.6	9 kg/km
4725001S	0.5	green/yellow	Spool	250	2.1	2.6	9 kg/km
4725002	0.75	green/yellow	Ring	100	2.2	2.8	11 kg/km
4725002K	0.75	green/yellow	Large cardboard box	2500	2.2	2.8	14 kg/km
4725002S	0.75	green/yellow	Spool	250	2.2	2.8	11 kg/km
4725003	1	green/yellow	Ring	100	2.4	2.9	14 kg/km
4725003K	1	green/yellow	Large cardboard box	2000	2.4	2.9	14 kg/km
4725003S	1	green/yellow	Spool	250	2.4	2.9	14 kg/km
4725011	0.5	black	Ring	100	2.1	2.6	9 kg/km
4725011K	0.5	black	Large cardboard box	3000	2.1	2.6	9 kg/km
4725011S	0.5	black	Spool	250	2.1	2.6	9 kg/km
4725012	0.75	black	Ring	100	2.2	2.8	11 kg/km
4725012K	0.75	black	Large cardboard box	2500	2.2	2.8	14 kg/km
4725012S	0.75	black	Spool	250	2.2	2.8	11 kg/km
4725013	1	black	Ring	100	2.4	2.9	14 kg/km
4725013K	1	black	Large cardboard box	2000	2.4	2.9	14 kg/km
4725013S	1	black	Spool	250	2.4	2.9	14 kg/km
4725021	0.5	blue	Ring	100	2.1	2.6	9 kg/km
4725021K	0.5	blue	Large cardboard box	3000	2.1	2.6	9 kg/km
4725021S	0.5	blue	Spool	250	2.1	2.6	9 kg/km
4725022	0.75	blue	Ring	100	2.2	2.8	11 kg/km
4725022K	0.75	blue	Large cardboard box	2500	2.2	2.8	14 kg/km
4725022S	0.75	blue	Spool	250	2.2	2.8	11 kg/km
4725023	1	blue	Ring	100	2.4	2.9	14 kg/km
4725023K	1	blue	Large cardboard box	2000	2.4	2.9	14 kg/km
4725023S	1	blue	Spool	250	2.4	2.9	14 kg/km
4725031	0.5	brown	Ring	100	2.1	2.6	9 kg/km
4725031K	0.5	brown	Large cardboard box	3000	2.1	2.6	9 kg/km
4725031S	0.5	brown	Spool	250	2.1	2.6	9 kg/km
4725032	0.75	brown	Ring	100	2.2	2.8	11 kg/km
4725032K	0.75	brown	Large cardboard box	2500	2.2	2.8	14 kg/km
4725032S	0.75	brown	Spool	250	2.2	2.8	11 kg/km
4725033	1	brown	Ring	100	2.4	2.9	14 kg/km
4725033K	1	brown	Large cardboard box	2000	2.4	2.9	14 kg/km
4725033S	1	brown	Spool	250	2.4	2.9	14 kg/km
4725041	0.5	red	Ring	100	2.1	2.6	9 kg/km
4725041K	0.5	red	Large cardboard box	3000	2.1	2.6	9 kg/km
4725041S	0.5	red	Spool	250	2.1	2.6	9 kg/km
4725042	0.75	red	Ring	100	2.2	2.8	11 kg/km
4725042K	0.75	red	Large cardboard box	2500	2.2	2.8	14 kg/km
4725042S	0.75	red	Spool	250	2.2	2.8	11 kg/km
4725043	1	red	Ring	100	2.4	2.9	14 kg/km
4725043K	1	red	Large cardboard box	2000	2.4	2.9	14 kg/km
4725043S	1	red	Spool	250	2.4	2.9	14 kg/km
4725051	0.5	white	Ring	100	2.1	2.6	9 kg/km
4725051K	0.5	white	Large cardboard box	3000	2.1	2.6	9 kg/km
4725051S	0.5	white	Spool	250	2.1	2.6	9 kg/km
4725052	0.75	white	Ring	100	2.2	2.8	11 kg/km
4725052K	0.75	white	Large cardboard box	2500	2.2	2.8	14 kg/km
4725052S	0.75	white	Spool	250	2.2	2.8	11 kg/km
4725053	1	white	Ring	100	2.4	2.9	14 kg/km
4725053K	1	white	Large cardboard box	2000	2.4	2.9	14 kg/km
4725053S	1	white	Spool	250	2.4	2.9	14 kg/km
4725061	0.5	grey	Ring	100	2.1	2.6	9 kg/km
4725061K	0.5	grey	Large cardboard box	3000	2.1	2.6	9 kg/km
4725061S	0.5	grey	Spool	250	2.1	2.6	9 kg/km
4725062	0.75	grey	Ring	100	2.2	2.8	11 kg/km
4725062K	0.75	grey	Large cardboard box	2500	2.2	2.8	14 kg/km
4725062S	0.75	grey	Spool	250	2.2	2.8	11 kg/km
4725063	1	grey	Ring	100	2.4	2.9	14 kg/km
4725063K	1	grey	Large cardboard box	2000	2.4	2.9	14 kg/km
4725063S	1	grey	Spool	250	2.4	2.9	14 kg/km
4725071	0.5	violet	Ring	100	2.1	2.6	9 kg/km
4725071K	0.5	violet	Large cardboard box	3000	2.1	2.6	9 kg/km
4725071S	0.5	violet	Spool	250	2.1	2.6	9 kg/km
4725072	0.75	violet	Ring	100	2.2	2.8	11 kg/km
4725072K	0.75	violet	Large cardboard box	2500	2.2	2.8	14 kg/km
4725072S	0.75	violet	Spool	250	2.2	2.8	11 kg/km
4725073	1	violet	Ring	100	2.4	2.9	14 kg/km
4725073K	1	violet	Large cardboard box	2000	2.4	2.9	14 kg/km
4725073S	1	violet	Spool	250	2.4	2.9	14 kg/km
4725081	0.5	pink	Ring	100	2.1	2.6	9 kg/km
4725081K	0.5	pink	Large cardboard box	3000	2.1	2.6	9 kg/km
4725082	0.75	pink	Ring	100	2.2	2.8	11 kg/km
4725082K	0.75	pink	Large cardboard box	2500	2.2	2.8	14 kg/km
4725083	1	pink	Ring	100	2.4	2.9	14 kg/km
4725083K	1	pink	Large cardboard box	2000	2.4	2.9	14 kg/km
4725091	0.5	orange	Ring	100	2.1	2.6	9 kg/km
4725091K	0.5	orange	Large cardboard box	3000	2.1	2.6	9 kg/km
4725091S	0.5	orange	Spool	250	2.1	2.6	9 kg/km
4725092	0.75	orange	Ring	100	2.1	2.8	11 kg/km
4725092K	0.75	orange	Large cardboard box	2500	2.1	2.8	14 kg/km
4725092S	0.75	orange	Spool	250	2.2	2.8	11 kg/km
4725093	1	orange	Ring	100	2.4	2.9	14 kg/km
4725093K	1	orange	Large cardboard box	2000	2.4	2.9	14 kg/km
4725093S	1	orange	Spool	250	2.4	2.9	14 kg/km
4725111	0.5	yellow	Ring	100	2.1	2.6	9 kg/km
4725111K	0.5	yellow	Large cardboard box	3000	2.1	2.6	9 kg/km
4725111S	0.5	yellow	Spool	250	2.1	2.6	9 kg/km
4725112	0.75	yellow	Ring	100	2.2	2.8	11 kg/km
4725112K	0.75	yellow	Large cardboard box	2500	2.2	2.8	14 kg/km
4725112S	0.75	yellow	Spool	250	2.2	2.8	11 kg/km
4725113	1	yellow	Ring	100	2.4	2.9	14 kg/km
4725113K	1	yellow	Large cardboard box	2000	2.4	2.9	14 kg/km
4725113S	1	yellow	Spool	250	2.4	2.9	14 kg/km
4725121	0.5	green	Ring	100	2.1	2.6	9 kg/km
4725121K	0.5	green	Large cardboard box	3000	2.1	2.6	9 kg/km
4725121S	0.5	green	Spool	250	2.1	2.6	9 kg/km
4725122	0.75	green	Ring	100	2.2	2.8	11 kg/km
4725122K	0.75	green	Large cardboard box	2500	2.2	2.8	14 kg/km
4725122S	0.75	green	Spool	250	2.2	2.8	11 kg/km
4725123	1	green	Ring	100	2.4	2.9	14 kg/km
4725123K	1	green	Large cardboard box	2000	2.4	2.9	14 kg/km
4725123S	1	green	Spool	250	2.4	2.9	14 kg/km
4725141	0.5	dark blue	Ring	100	2.1	2.6	9 kg/km
4725141K	0.5	dark blue	Large cardboard box	3000	2.1	2.6	9 kg/km
4725141S	0.5	dark blue	Spool	250	2.1	2.6	9 kg/km
4725142	0.75	dark blue	Ring	100	2.2	2.8	11 kg/km
4725142K	0.75	dark blue	Large cardboard box	2500	2.1	2.8	11 kg/km
4725142S	0.75	dark blue	Spool	250	2.2	2.8	11 kg/km
4725143	1	dark blue	Ring	100	2.4	2.9	14 kg/km
4725143K	1	dark blue	Large cardboard box	2000	2.4	2.9	14 kg/km
4725143S	1	dark blue	Spool	250	2.4	2.9	14 kg/km
4725263K	1	blue/white	Large cardboard box	2000	2.4	2.9	14 kg/km
