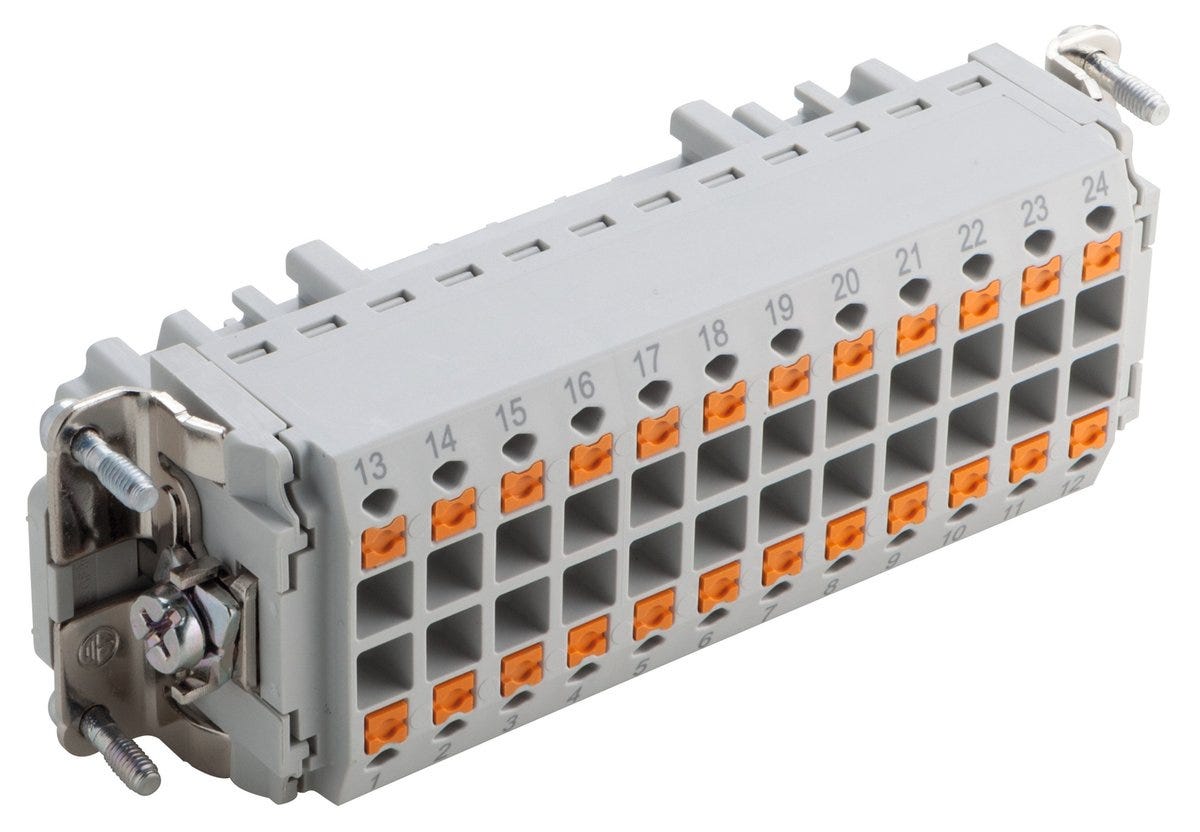

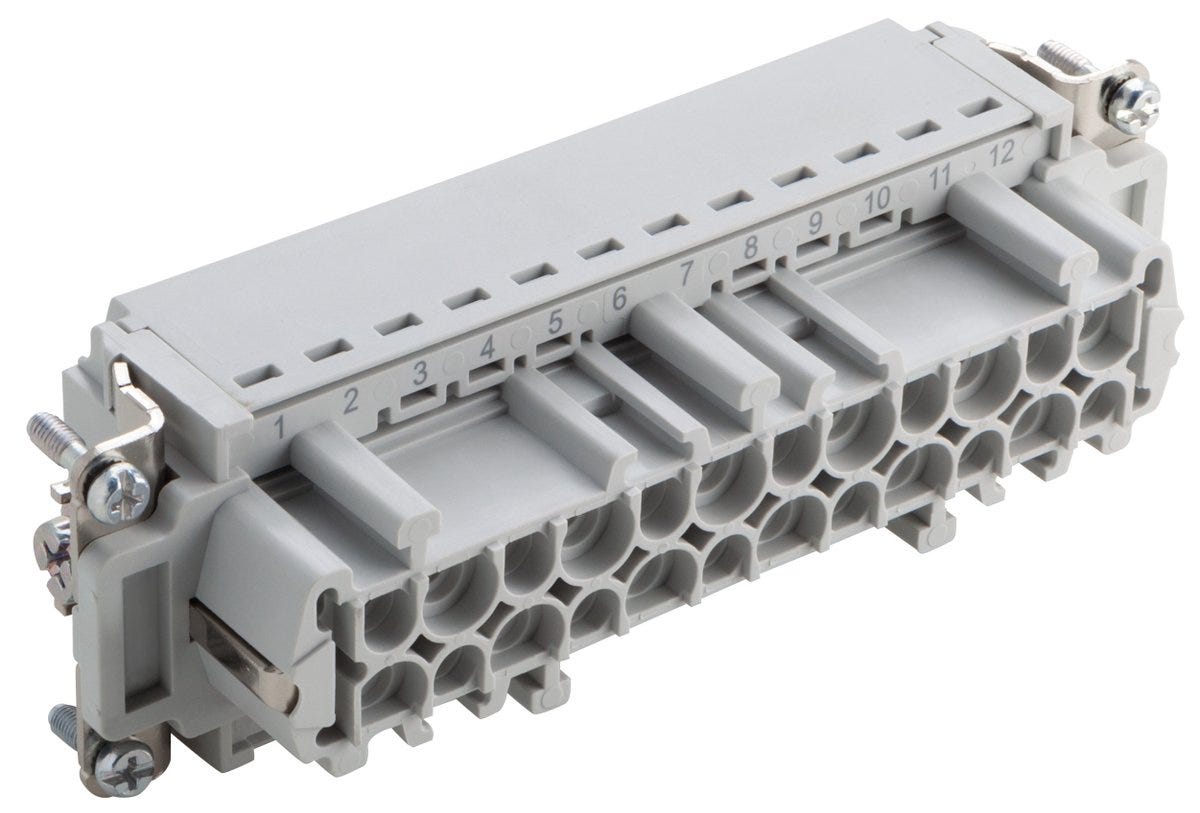

EPIC® H-BE 24 BP

Name: EPIC® H-BE 24 BP
Brand: LAPP
SKU: 44423207
Price: 1798.12 THB
Availability: OutOfStock

Insert with push-in connection Socket; Number of contacts: 24+PE; Design size: 24B; 600 V AC rms / DC according to UL/CSA; 13 A according to UL/CSA; For cross-section (min./max.): 0.14mm² - 2.5mm²; Contacts included; Polyamide

LAPPSKU: 44423207Article No.#: 44423207

EPIC® H-BE 24 BP

EPIC® H-BE 24 BP

1,798.12 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Inserts from the EPIC® H-BE series are regarded as classics in the industry and are ideal for use at higher voltages and currents

In the EPIC® H-BE series, inserts of different connection types can be combined with one another (screw, crimp, cage spring or push-in) within the same size

Push-in connection enables the shortest connection times: strands with conductor end sleeves can be inserted and contacted without any tools; just press the orange button to remove the contact. For strands without conductor end sleeves, the button must be pressed to open the spring before insertion or removal

The round test socket for 2 mm standard measuring tips is positioned so that it is still accessible for signal testing, even if the insert is already installed in the panel-mount base

Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics)

UL certification according to technical data enables the product to be used on the North American market

Wide variety of suitable housing variants.

Applications

For connecting devices and machines to a power supply in various applications

Suitable for wiring inside control cabinets

For transmission of control signals to actuators

Typical applications include platform, lighting and lifting technology.

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product range	RECTANGULAR
Product type	Insert with push-in connection
Scope of delivery	including contacts
Design size	24B
Delivery Unit	5.000
Weight	0.128 kg

Electrical Characteristics

Rated current	13 A according to UL/CSA, 16 A according to IEC
Protective conductor integrated into insert
Over voltage category	III
Rated impulse voltage	6 kV AC rms / DC according to IEC 61984
Rated voltage	600 V AC rms / DC according to UL/CSA, 500 V AC rms / DC according to IEC
Max. contact resistance	2

Product Design

EMC screening
With wire protection
Colour	grey
Connectable conductor cross section min. (AWG)	26 AWG
Max. connectable conductor cross-section AWG	14 AWG
Min. connectable conductor cross-section (mm2)	0.14
Number of contacts	24+PE
Contact material	Brass
With protective conductor
Max. connectable conductor cross-section (mm2)	2.5
Contact material, short form	CuZn
Contact insert type	Socket
Material contact surface	Silver-plated
Contact insert material, short form	PA
PE connection type	Screw connection
Contact variant	Socket
Contact coating material, short form	Ag
Connector type	Socket
Material contact insert	Polyamide
Contact manufacturing method	Stamped
Number of PE contacts	1
Conductor connection type	Push-in
Contact insert without contacts
Contact diameter	2.5
Screen contact

Product Characteristics

Flame-retardant
Minimum tightening torque for PE connection	1.2
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Maximum tightening torque for PE connection	1.2
Operating temperature max.	125
Min. number of insertion cycles	500
Suitable for EX-applications
Impact-resistant
Pollution degree	3
Vibration protection
Flame retardance according to	UL 94 V-0
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
Fire protection for railway vehicles hazard level	EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3
cUR category control number	ECBT8
UL category control number	ECBT2
Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (e-file number: E75770)
cUR certification	according to CSA C22.2 No. 182.3 (e-file number: E75770)
CE marked
VDE certified
EAC certification number	Отказное письмо № 39
EAC-certified	Not required
