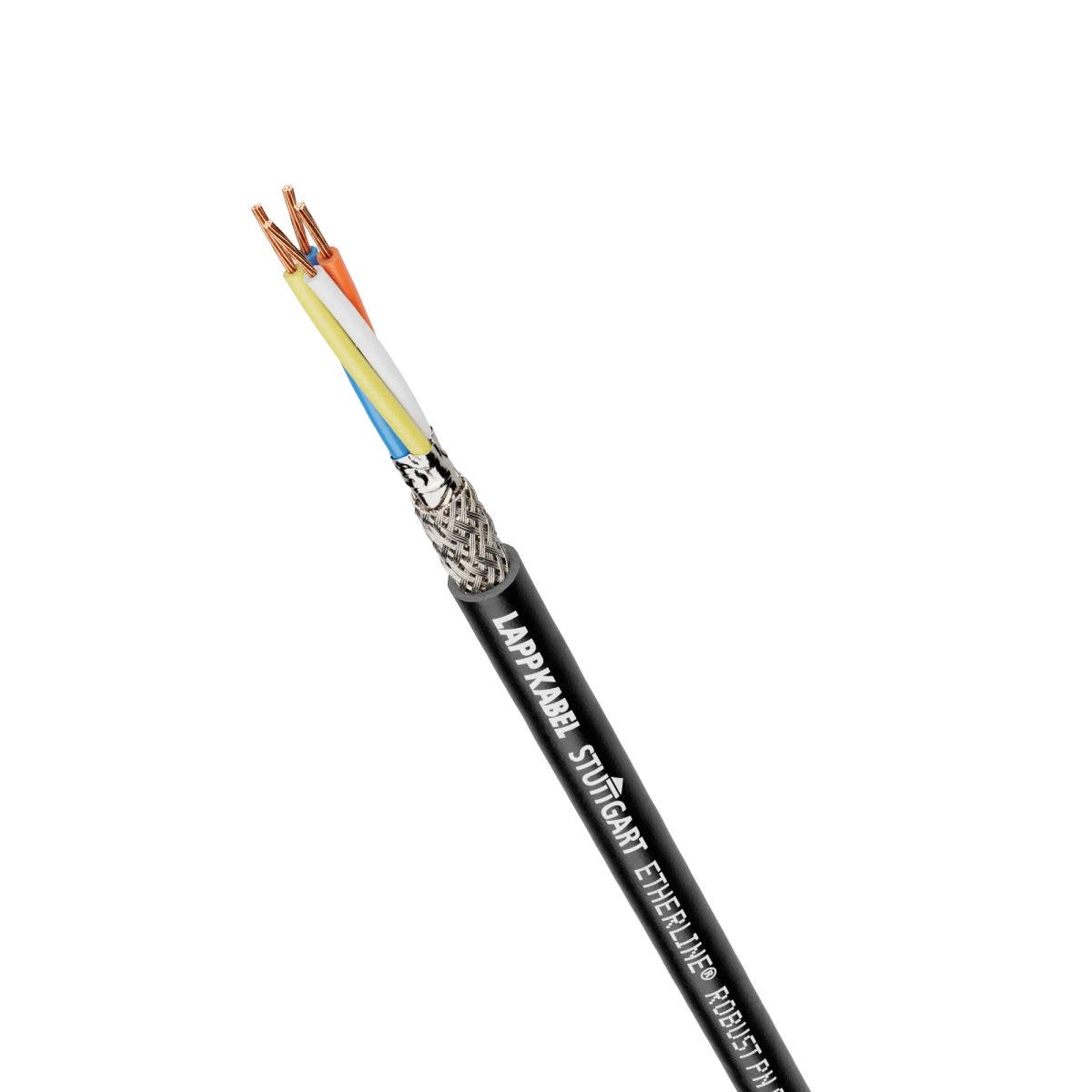

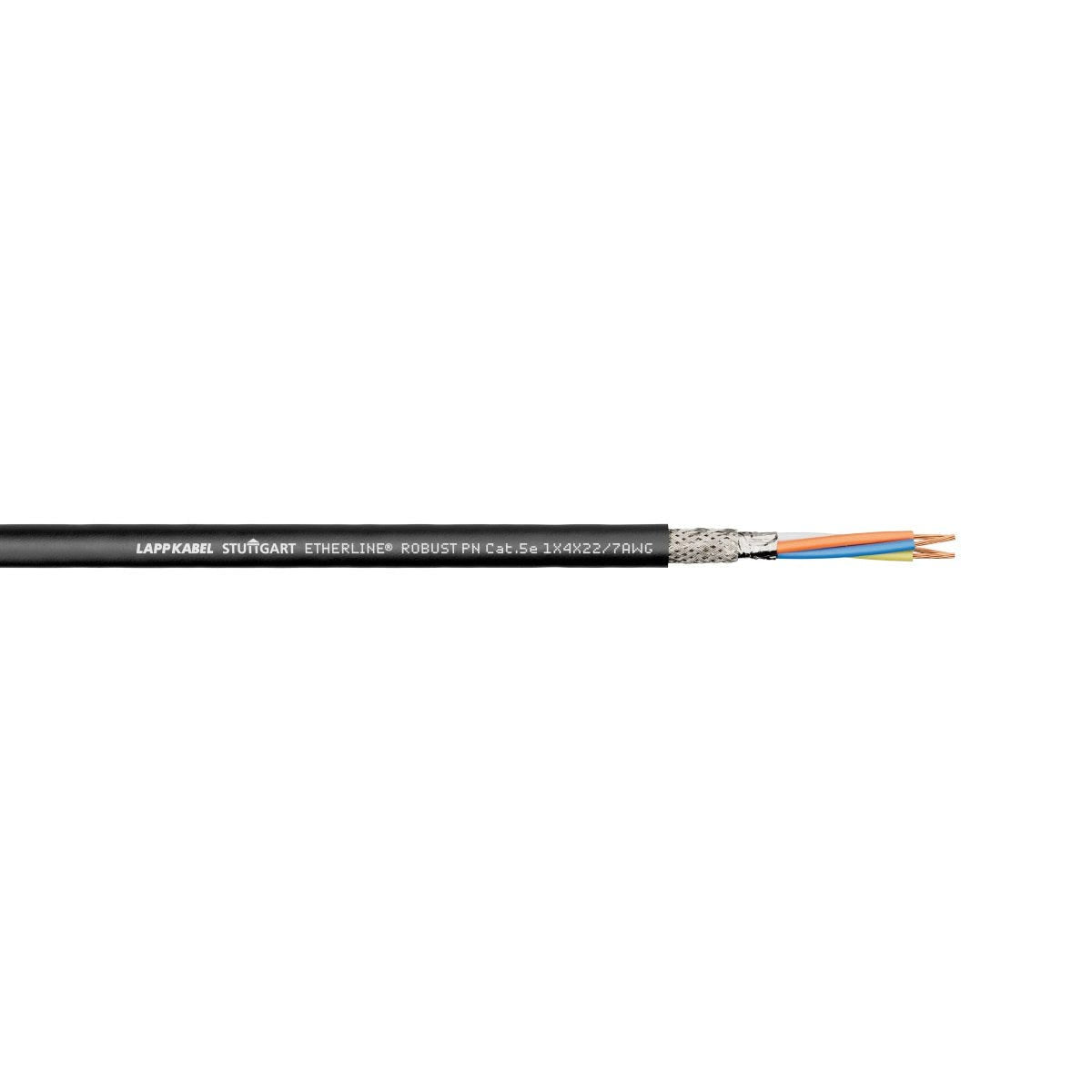

ETHERLINE® ROBUST PN Cat.5

Name: ETHERLINE® ROBUST PN Cat.5
Brand: LAPP
SKU: 2170451
Price: 264.48 THB
Availability: OutOfStock

Ethernet cable; Flexible; ETHERNET/IP, EtherCAT; Cat.5e; SF/UTP; TPE; Halogenfree; black

LAPPSKU: 2170451Article No.#: 2170451

ETHERLINE® ROBUST PN Cat.5

Ethernet cable; Flexible; ETHERNET/IP, EtherCAT; Cat.5e; SF/UTP; TPE; Halogenfree; black

ETHERLINE® ROBUST PN Cat.5

264.48 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Halogen free core insulation and sheath compound to meet special fire safety requirements

Low smoke density in the event of fire (according to DIN EN IEC 61034-2)

Excellent resistance to a wide range of chemical substances (e.g. ammonia compounds, biogases), as well as plant, animal or synthetic fats and oils (e.g. bio-oils and ester-based hydraulic oils)

Particularly suitable in conjunction with water-soluble cleaning agents and coolants

Resistant to hot water and steam when subjected to frequent steam jet cleaning

Tested resistance to ECOLAB® disinfectants and cleaning agents

High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP)

For the transmission of analogue and digital signals in the frequency range up to 100 MHz (Cat. 5e) or up to 600 MHz (Cat. 7).

Applications

Can be used universally on machine interfaces for many applications in data and signal transmission

Typical areas of application are washing bays, sewage treatment plants, composting plants and applications in the food industry

“PN” variants are suitable for flexible use in the PROFINET network (type B)

Also suitable for EtherCAT and EtherNet/IP applications

For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801

Suitable for applications with UV-C radiation (according to LAPP's internal test method)

Suitable for outdoor use.

Technical Attributes

General Information

Brand	ETHERLINE®
Product type	Ethernet cable
valid fieldbus or Ethernet system	ETHERNET/IP, EtherCAT
Copper index	30.400 kg/km
Copper index (lb)	0.010 lb
Weight	50 kg/km

Electrical Characteristics

Maximum operating voltage (not for power transmission)	125
Nominal surge impedance	100
Segregation class according to EN 50174-2	D
Nominal voltage	48 V AC rms according to IEC
Supports Power over Ethernet	IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Loop resistance at 20°C	118.0
Possible data transmission rates	100
Signal propagation speed (nom.)	0.64
Test voltage core/screening	1
Test voltage core/core	1
Rated voltage core to core	50 V AC rms according to IEC

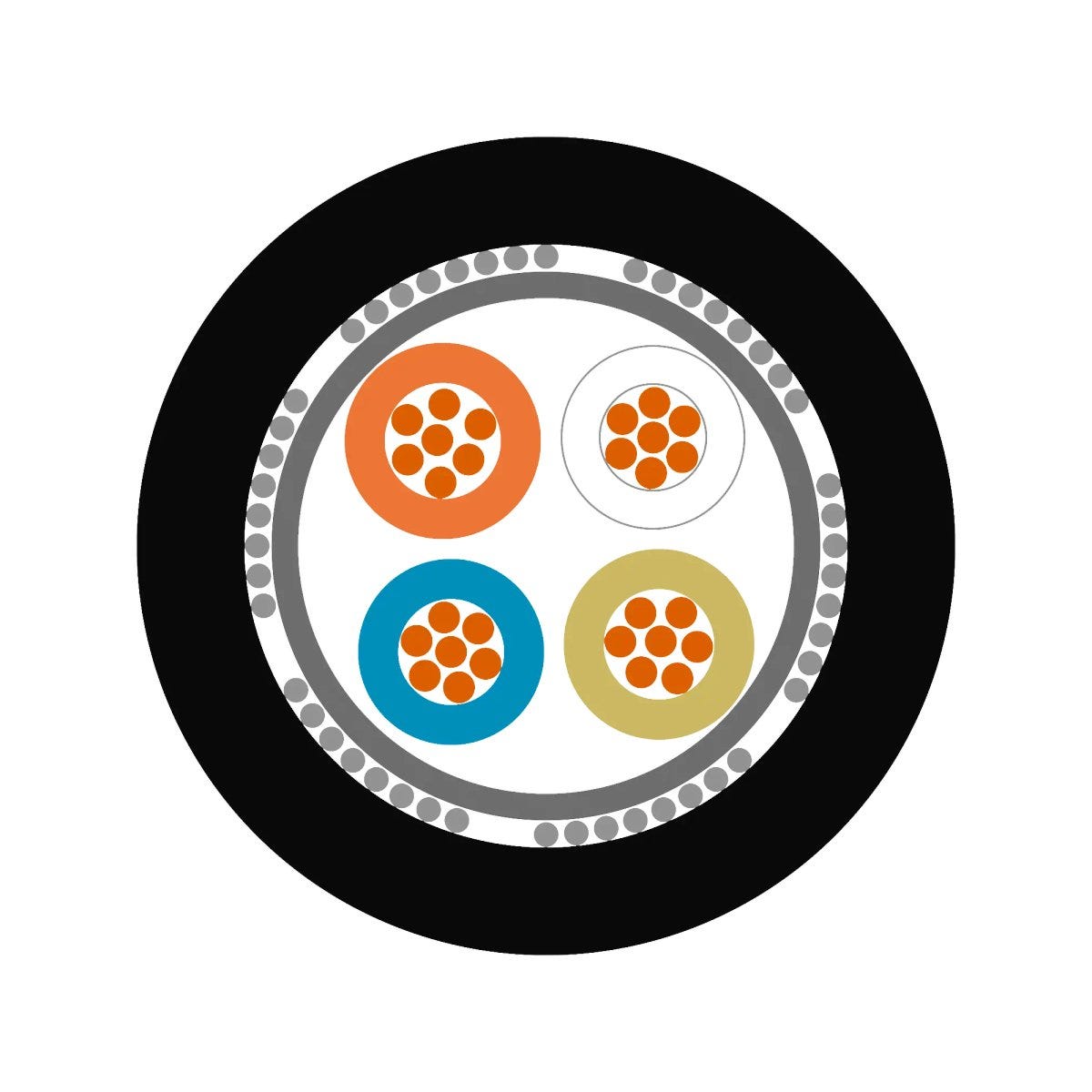

Product Design

Nominal core diameter	1.5
Conductor design	7-wire
Nominal outer diameter	6.5 mm
Conductor material	Bare copper
Min. outer diameter	6.2
Nominal conductor cross-section (metric)	0.34 mm²
Conductor count/size	1x4x22/7AWG
Optical degree of coverage of the stranded screening, overall screen	85
Shielded
Core identification	Colours
Shape of cable	Round
Number of pairs	2
Outer sheath colour	black
Stranding type	Star quad
Leading conductor cross-section	AWG
Abbreviation shielding	SF/UTP
Cable sheath RAL colour	RAL 9005
With rodent protection
Type of overall screen	Aluminium-laminated plastic foil, Tin-plated copper braiding
Number of cores	4
Nominal conductor cross-section (AWG)	22 AWG
Core insulation basic material	Polyolefin
Basic material of outer sheath	Thermoplastic elastomers
Including protective earth
Core insulation basic material, short form	PO
With armouring
Max. outer diameter	6.8
Number of wires	7
Basic material of outer sheath, short form	TPE

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
Halogen-free according to	IEC 60754-1
For continuous flexing
Corrosiveness of combustion gases according to	EN 50267-2-2, IEC 60754-2
Fast Connect (FC) cable
Ozone-resistant according to	EN 50396, method B
Chemical resistant
Ozone resistant
Installation temperature min.	-40
UV-resistant
Minimum bending radius in mm, fixed installation	54.4 mm
Weather-resistant according to	ISO 4892-2
PWIS-free
Application area	Flexible
max. conductor temperature, occasionally moved	-40 °C to 80 °C max. conductor temperature:
Low smoke density according to	IEC 61034-2
Oil-resistant
Ethernet cable category	Cat.5e
Minimum bending radius in mm, occasionally flexing	68.0 mm
Max. assembly temperature	80
weather resistant
Minimum bending radius, stationary	8 x outer diameter
Minimum bending radius, occasionally flexing	10 x outer diameter
Temperature, fixed installation	-50 °C to 80 °C max. conductor temperature:
UV-resistant according to	VDE 0276-605
UV-C resistant
Windable
For torsional load
Halogenfree

Certifications and Standards

cUR recognized
CSA certified
Tested for fire protection for railway vehicles
Ecolab certified
cUL listed
Flame retardance tested according to UN/ECE-R118
UL listed
CE marked
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Downloads

CE declaration of conformity - en-UK (PDF)

Certificate ECOLAB - de-DE (PDF)

Certificate ECOLAB - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
