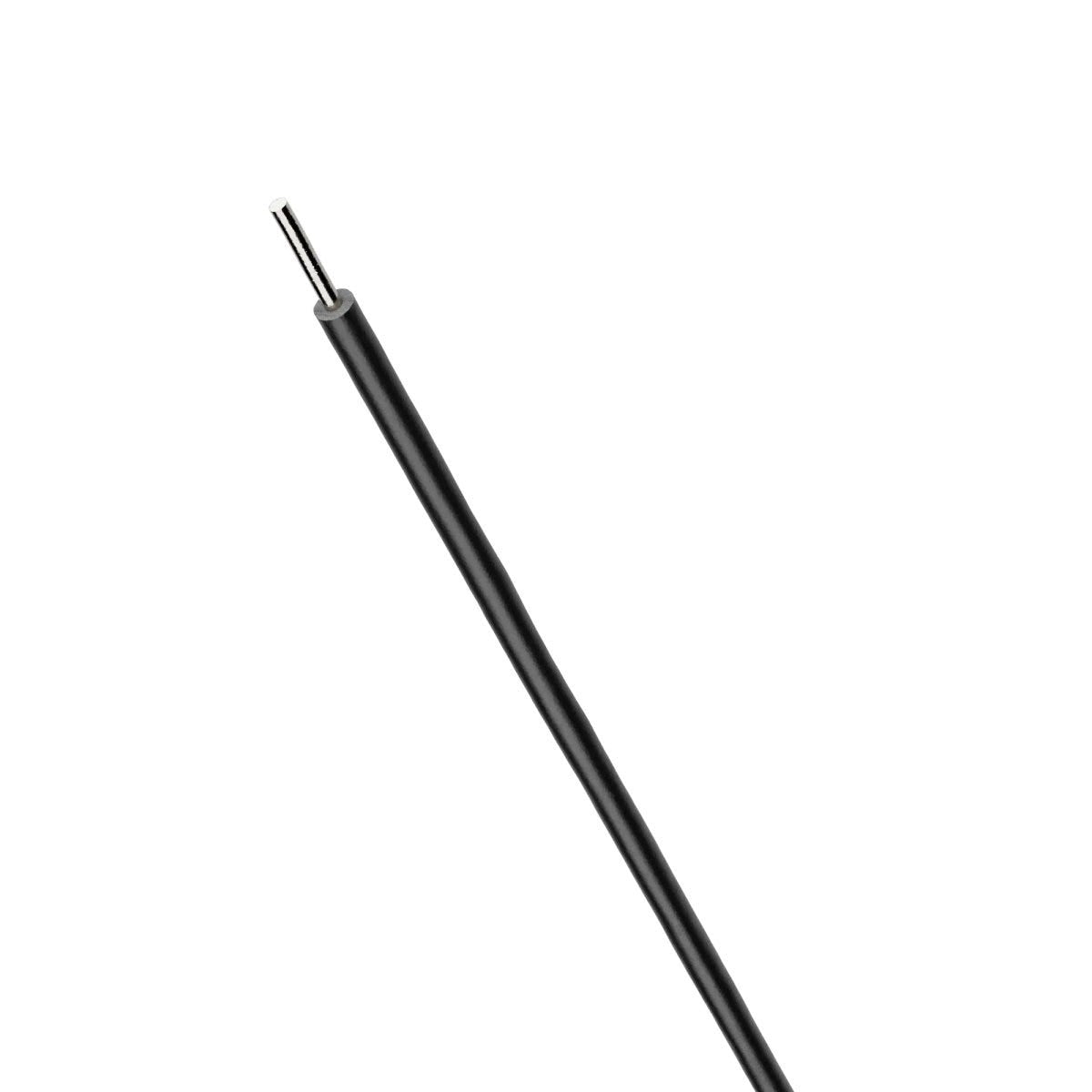

ÖLFLEX® HEAT 180 SiD 1X6 BU

Name: ÖLFLEX® HEAT 180 SiD 1X6 BU
Brand: LAPP
SKU: 0074002
Price: 89.99 THB
Availability: OutOfStock

Single core; 1X6; blue; U₀/U: 300/500 V; Silicone; -50°C - 180°C; Fixed installation

LAPPSKU: 0074002Article No.#: 0074002

ÖLFLEX® HEAT 180 SiD 1X6 BU

Single core; 1X6; blue; U₀/U: 300/500 V; Silicone; -50°C - 180°C; Fixed installation

ÖLFLEX® HEAT 180 SiD 1X6 BU

89.99 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Applications

Areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while, Typical fields of application- Control cabinet manufacturing- Appliances and apparatus engineering- Electric motor industry- Sauna/solarium construction- Thermal and heating elements- Lighting technology- Ventilator engineering- Air-conditioning technology- Furnace construction- Polymer processing- Generator and transformer manufacturing

Technical Attributes

General Information

Product type	Single core
Brand	ÖLFLEX®
Copper index	58.000 kg/km
Copper index (lb)	389.744 lb
Weight	65 kg/km

Electrical Characteristics

Nominal voltage	U₀/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C	3.11 Ω/km
Test voltage	2 kV

Product Design

Shape of cable	Round
Single core colour	blue
Conductor design	IEC 60228 class 1: solid conductor
Nominal outer diameter	4.6 mm
Conductor material	Tin-plated copper
Number of cores	1
Nominal conductor cross-section (metric)	6 mm²
Cable dimension	1X6
Core insulation basic material	Silicone
Single core identification	Single-coloured

Product Characteristics

Flame-retardant
Application area	Fixed installation
Halogen-free according to	IEC 60754-1
Oil-resistant
Minimum bending radius with careful bending	3 x outer diameter
UV-resistant
Minimum bending radius, stationary	6 x outer diameter
Temperature, fixed installation	-50 °C to 180 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Minimum bending radius in mm, fixed installation	27.6 mm
PWIS-free
Halogenfree
Short-term temperature peaks	200

Certifications and Standards

cUR recognized
cUL listed
CSA certified
UL listed
CE marked
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Downloads

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

All articles from ÖLFLEX® HEAT 180 SiD

Article number	Conductor cross-section (mm2)	Single core colour	Weight
0068001	0.5	black	9 kg/km
0068105	0.5	white	9 kg/km
0069000	0.75	green/yellow	12 kg/km
0069001	0.75	black	12 kg/km
0069002	0.75	blue	12 kg/km
0069003	0.75	brown	12 kg/km
0069105	0.75	white	12 kg/km
0070000	1	green/yellow	15 kg/km
0070001	1	black	15 kg/km
0070002	1	blue	15 kg/km
0070003	1	brown	15 kg/km
0070104	1	red	15 kg/km
0070105	1	white	15 kg/km
0071000	1.5	green/yellow	20 kg/km
0071001	1.5	black	20 kg/km
0071002	1.5	blue	20 kg/km
0071003	1.5	brown	20 kg/km
0071105	1.5	white	20 kg/km
0072001	2.5	black	32 kg/km
0072002	2.5	blue	32 kg/km
0073001	4	black	50 kg/km
0074001	6	black	65 kg/km
0074002	6	blue	65 kg/km
