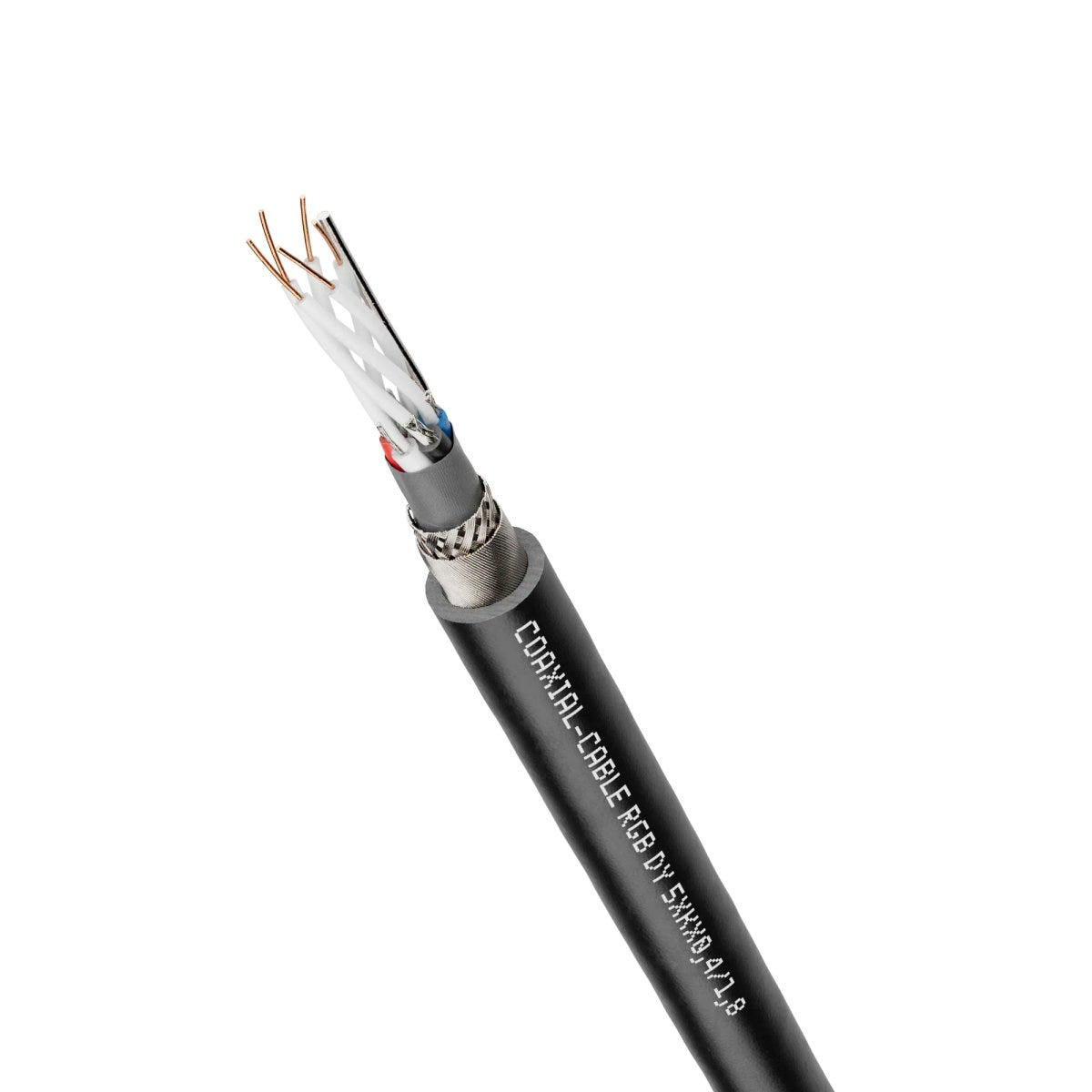

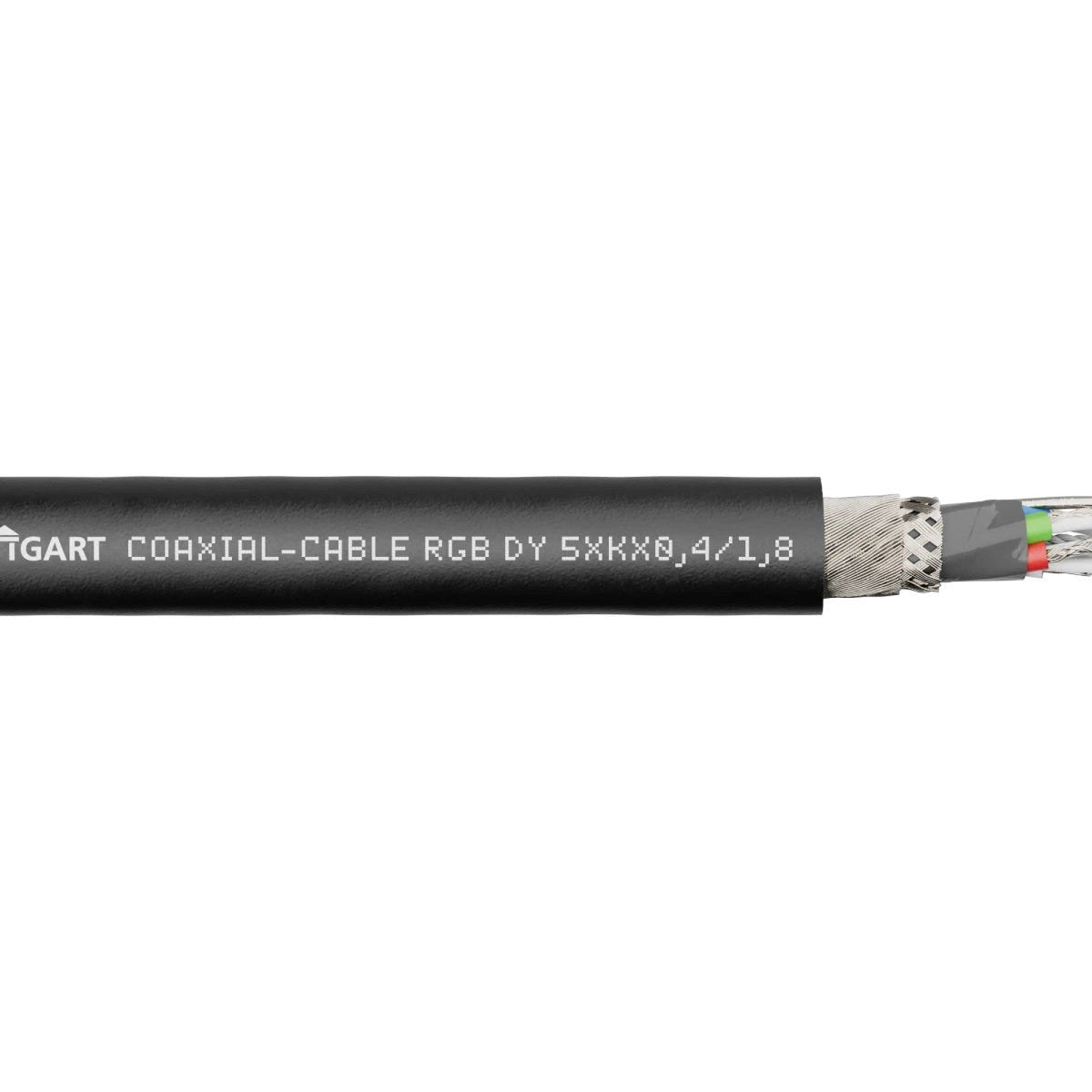

COAXIAL-CABLE RGB DY 5xKx0,4/1,8

Name: COAXIAL-CABLE RGB DY 5xKx0,4/1,8
Brand: LAPP
SKU: 0034246
Price: 240.88 THB
Availability: OutOfStock

Coaxial cables; RGB DY; Fixed Installation;

LAPPSKU: 0034246Article No.#: 0034246

COAXIAL-CABLE RGB DY 5xKx0,4/1,8

Coaxial cables; RGB DY; Fixed Installation;

COAXIAL-CABLE RGB DY 5xKx0,4/1,8

240.88 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Low attenuation ensures a longer transmission distance, Transmission of the red (R), green (G) and blue (B) colour signals

Applications

Colour monitor cable for PCs and CAD workstations, process visualisation, For fixed installation in rooms (RGB CY..x Kx 0.4/1.8), For highly flexible applications in power chains (energy supply chains) and continuously moving machine components (RGB-FD..x Kx 0.6L/2.4)

Technical Attributes

General Information

Product type	Coaxial cables
Copper index	60.000 kg/km
Copper index (lb)	403.100 lb
Weight	132 kg/km

Electrical Characteristics

Product Design

Shape of cable	Round
Nominal outer diameter	9.5 mm
Type of coaxial cables	RGB DY
Type of overall screen	Tin-plated copper braiding
Conductor count/size	RGB DY 5xKx0,4/1,8
Basic material of outer sheath	Polyvinylchloride
Including protective earth
Inner conductor material	Bare copper
Shielded
Nominal conductor diameter (mm)	0.4
Basic material of outer sheath, short form	PVC

Product Characteristics

Flame-retardant
Application area	Fixed installation
Oil-resistant
For continuous flexing
Fast Connect (FC) cable
UV-resistant
Flame retardance according to	IEC 60332-1-2
Halogenfree

Certifications and Standards

CE marked
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.РА01.В.47116/21
EAC-certified

Documentation

Downloads

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

All articles from Coaxial cables RGB

Article number	Type of coaxial cables	Application area	Inner conductor material	Nominal conductor diameter (mm)	Basic material of outer sheath, short form	Weight
0034245	RGB CY	Fixed installation	Bare copper	0.4	PVC	97 kg/km
0034246	RGB DY	Fixed installation	Bare copper	0.4	PVC	132 kg/km
0034247	RG FD	Cable chain	Bare copper	0.6	PUR	100 kg/km
