SILVYN® SINUS PP 9,9x13,0 BK

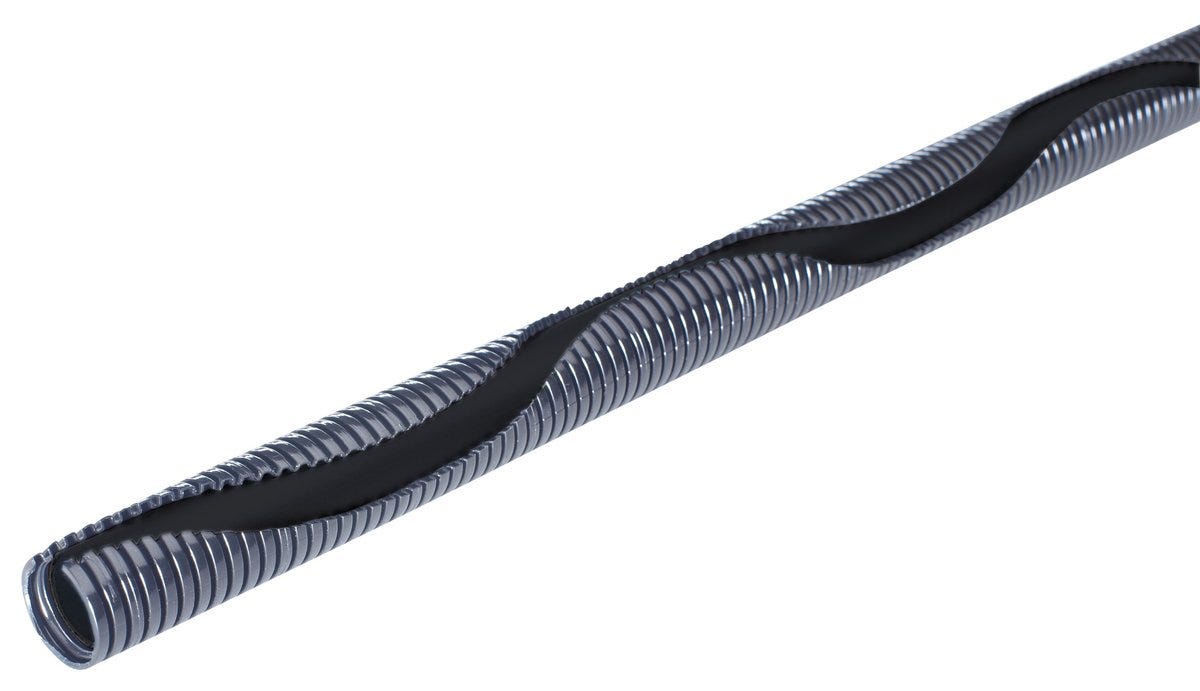

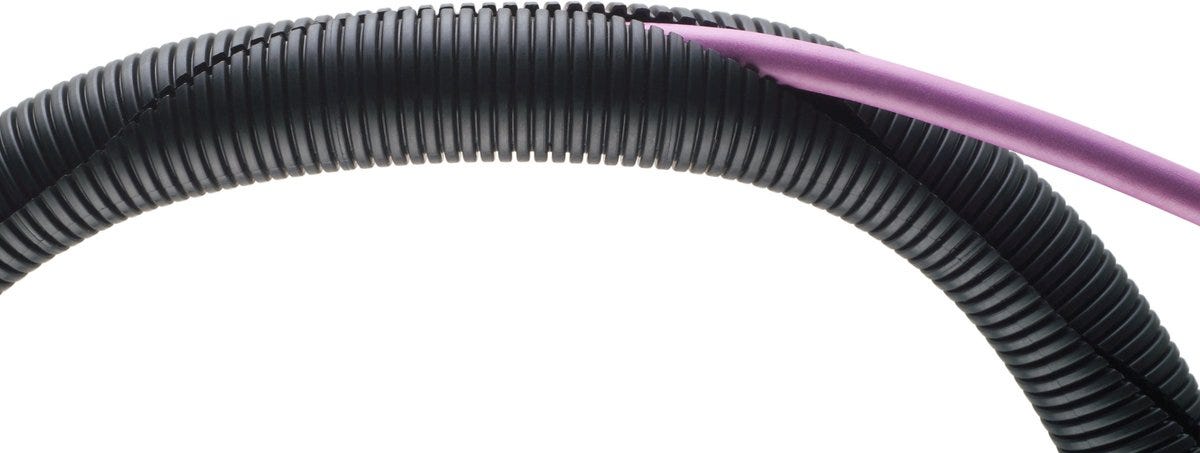

Parallel corrugated slotted protective conduit; Inner diameter: 9.9mm; Outer diameter: 13.0mm; Nominal size: 10; Polypropylene; UV-resistant
SILVYN® SINUS PP 9,9x13,0 BK
46.69 ฿
/
SILVYN® SINUS PP 9,9x13,0 BK
46.69 ฿
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
heat resistance
cold resistance
flame-retardant
oil resistant
chemical resistance
uv-resistant.
icon powerchain
Technical Attributes
General Information
| Product type | Parallel corrugated slotted protective conduit |
| Brand | SILVYN® |
| Delivery Unit | 100.000 |
| Weight | 20 kg/km |
Electrical Characteristics
Product Design
| Nominal size | 10 |
| Slit |
|
| Outer diameter | 13.0 |
| Colour | black |
| Inner diameter | 9.9 |
| Conduit material | Polypropylene |
Product Characteristics
| Flame-retardant |
|
| Oil-resistant |
|
| For continuous flexing |
|
| Suitable for EX-applications |
|
| Chemical resistant |
|
| UV-resistant |
|
| Flame retardance according to | UL 94 V-2 |
| Halogenfree |
|
Certifications and Standards
| EHEDG certified |
|
| Ecolab certified |
|
| DNV-certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| GGVS certified |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
Documentation
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from SILVYN® SINUS PP
| Article number | Imp inner diam | Inner diameter | Imp outer diam | Outer diameter | Nominal size | Imp total length | Total length def | Colour | Delivery Unit |
|---|---|---|---|---|---|---|---|---|---|
| 61806505 | 6.7 | 10.0 | 7.5 | black | 100.000 | ||||
| 61806510 | 8.4 | 11.4 | 8.5 | black | 100.000 | ||||
| 61806515 | 9.9 | 13.0 | 10 | black | 100.000 | ||||
| 61806520 | 12.2 | 15.7 | 12 | black | 100.000 | ||||
| 61806525 | 12.7 | 15.8 | 13 | black | 100.000 | ||||
| 61806530 | 14.2 | 18.4 | 14 | black | 100.000 | ||||
| 61806535 | 16.6 | 21.0 | 17 | black | 100.000 | ||||
| 61806540 | 19.2 | 23.9 | 19 | black | 100.000 | ||||
| 61806545 | 21.3 | 25.4 | 22 | black | 100.000 |
