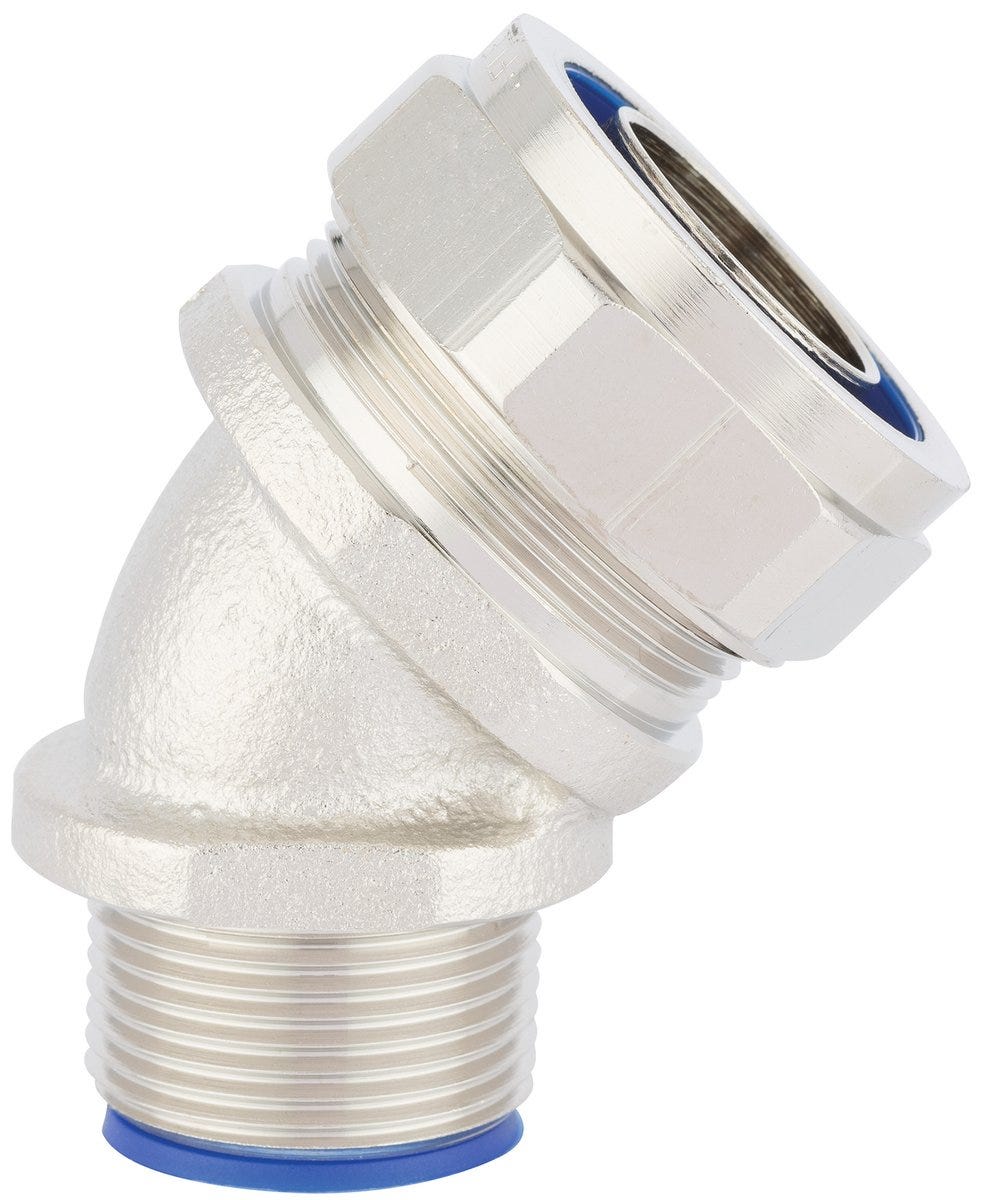

SILVYN® LTP 45° M20X1.5/1 NPB

Name: SILVYN® LTP 45° M20X1.5/1 NPB
Brand: LAPP
SKU: 55510300
Price: 1729.72 THB
Availability: OutOfStock

Angled conduit gland; M 20; Nominal size: 16; Suitable for protective cable conduit size: 16; Halogenfree; UV-resistant; IP 68 - 5 bar, IP 69, IP 66, IP 67;

LAPPSKU: 55510300Article No.#: 55510300

SILVYN® LTP 45° M20X1.5/1 NPB

Angled conduit gland; M 20; Nominal size: 16; Suitable for protective cable conduit size: 16; Halogenfree; UV-resistant; IP 68 - 5 bar, IP 69, IP 66, IP 67;

SILVYN® LTP 45° M20X1.5/1 NPB

1,729.72 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High tensile strength, Vibration protection, High sealing performance

Applications

In combination with protective conduit:, SILVYN LTP, Applications with high mechanical stress, Used in areas where liquids are present

Technical Attributes

General Information

Including lock nut
Including o-ring
Brand	SILVYN®
Product type	Angled conduit gland
Delivery Unit	10.000
Weight	0.07 kg

Electrical Characteristics

Product Design

Lockable (two-part)
Nominal size	16
Total length	44.8
Divisible fitting
Suitable protective conduit	SILVYN® LTP
Thread type	Metric
EMC screening
Slit
Thread size	M 20
Outer diameter	26
Screw-in sleeve material	Brass
Inner diameter	10.7
Thread length	13
Gland body material	Brass
Conduit gland design	45° angle
Suitable for protective cable conduit size	16
Cable gland body material, short form	CuZn
Bending protection
Clear width	10.7
Bending protection fixed installation
Pitch of thread	1,5
Surface protection	Nickel-plated
Flexibly installed bending protection
Rotatable thread
Spanner size 1	24
Thread standard	DIN EN 60423
Sealing material, short form	PA
Spanner size 2	26
Sealing material	Polyamide

Product Characteristics

Flame-retardant
IP protection rating	IP 68 - 5 bar, IP 69, IP 66, IP 67
Acid-resistant
Chemical resistant
UV-resistant
Oil-resistant
Strain relief
Suitable for EX-applications
Impact-resistant
Vibration protection
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Product standard according to IEC	IEC 61386-23
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Downloads

CE declaration of conformity - de-DE (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
