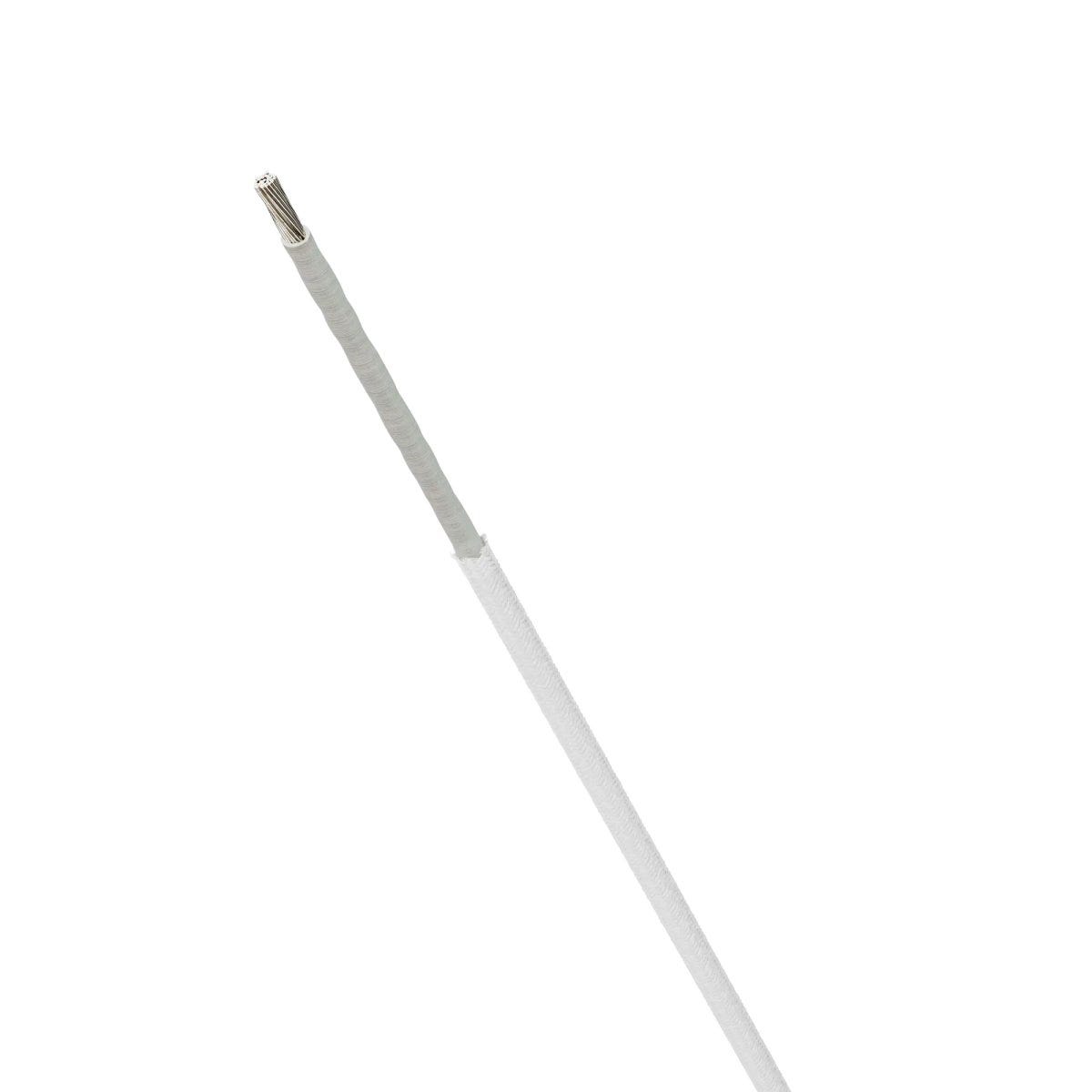

ÖLFLEX® HEAT 650 SC 1x0,75

Name: ÖLFLEX® HEAT 650 SC 1x0,75
Brand: LAPP
SKU: 1232651
Price: 130.39 THB
Availability: OutOfStock

Single core; 1X0.75; U₀/U: 300/500 V; Glass fibre; -50°C - 700°C; Fixed Installation

LAPPSKU: 1232651Article No.#: 1232651

ÖLFLEX® HEAT 650 SC 1x0,75

Single core; 1X0.75; U₀/U: 300/500 V; Glass fibre; -50°C - 700°C; Fixed Installation

ÖLFLEX® HEAT 650 SC 1x0,75

130.39 ฿

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Suitable for areas where the installation temperature and ambient temperature is very high, Good electrical conductivity due to nickel strand also at high temperatures

Applications

Heating modules, electric heating devices, heat lockers, Furnaces, electric ranges, night storage heater, Heavy industry, iron and steel works, foundries, glass and ceramic processing, chemical industries, Machinery, apparatus and power plant construction

Technical Attributes

General Information

Product type	Single core
Brand	ÖLFLEX®
Weight	15 kg/km

Electrical Characteristics

Nominal voltage	U₀/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C	120 Ω/km
Test voltage	1.8 kV

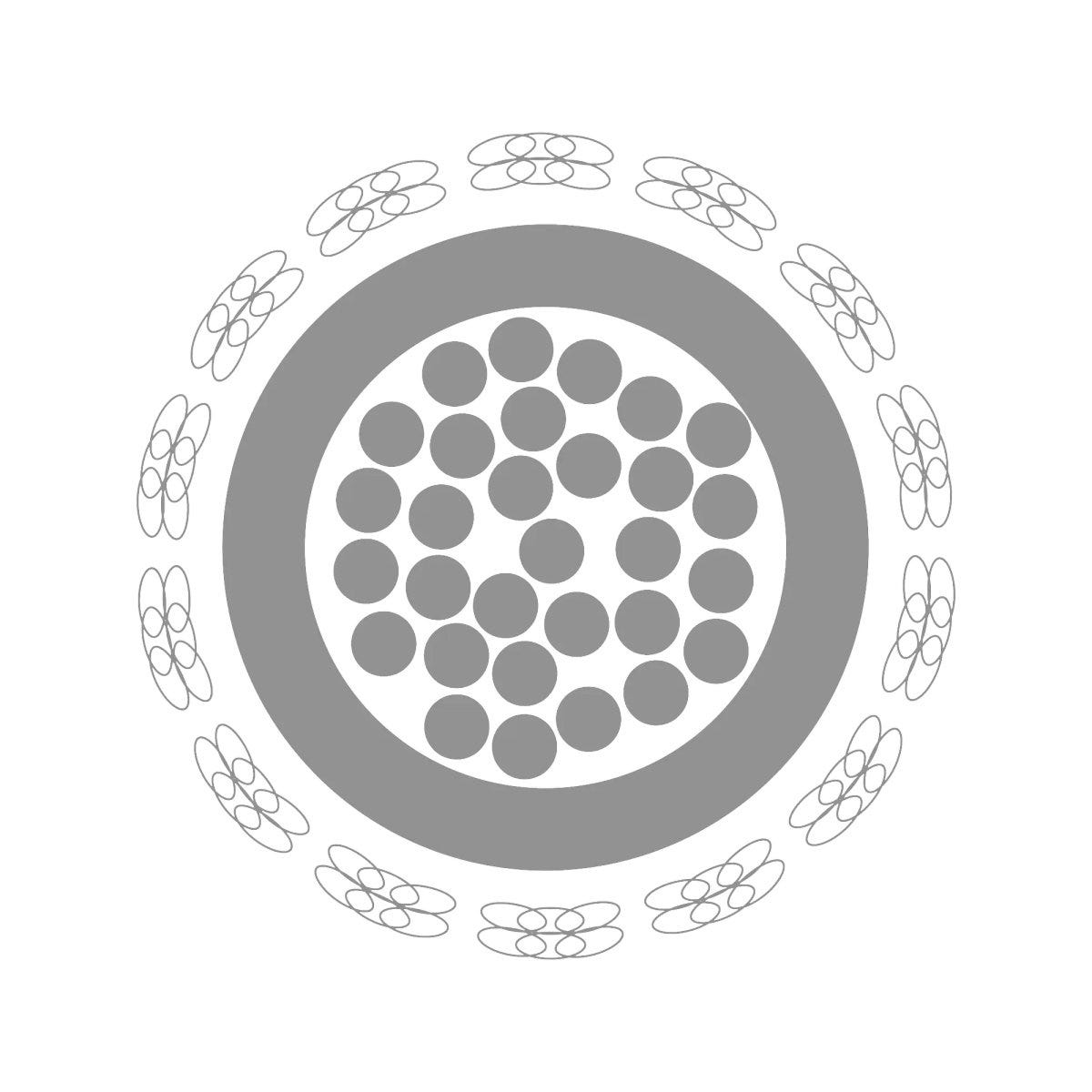

Product Design

Shape of cable	Round
Conductor design	fine-wire
Nominal outer diameter	2.5 mm
Conductor material	Nickel
Number of cores	1
Nominal conductor cross-section (metric)	0.75 mm²
Cable dimension	1X0.75
Core insulation basic material	Glass fibre
Single core identification	Single-coloured
Shielded

Product Characteristics

Flame-retardant
Application area	Fixed installation
Oil-resistant
UV-resistant
Minimum bending radius, stationary	10 x outer diameter
Water resistant
Temperature, fixed installation	-50 °C to 700 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Minimum bending radius in mm, fixed installation	25.0 mm
PWIS-free
Halogenfree

Certifications and Standards

Flame retardance tested according to UN/ECE-R118
CE marked
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Downloads

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
